Supplier: Xing Da electric technology co.,ltd
Contact person: Ms. jessie zhang
Position: salesperson
Address: 818#Zhaofengxiang Business Building Songgang Town
Country: China
Phone: 8675529621535 - Mobi: 8675529621535

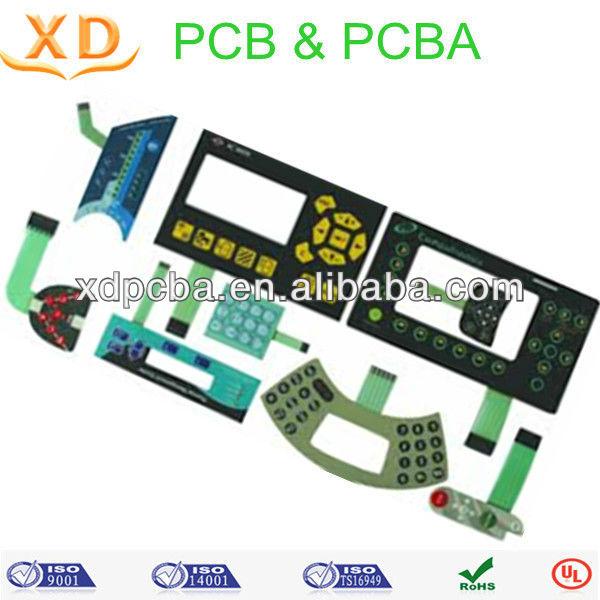

Full PCBA including membraneswitch,LCD,PCB,cable
Price: US $ 0.1 - 15 / Piec
Full PCB assembly including membrane switch, LCD, PCB, box and cable
Quick Details
Test Voltage:
10-300V
ance Control:
+/-10%
Different Impendance:
+-/10%
Outline Tolerance:
0.125mm(5mil) CNC Routing;+/-0.15mm(6mil) by Punching
Hole Diameter(H):
PTH L:+/-0.075mm(3mil);Non-PTH L:+/-0.05mm(2mil)
Conductor Width(W):
+/-20% of original artwork PTH L:+/-0.075mm(3mil)
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
XingDa
Base Material:
FR-4,FR2.Taconic,Rogers, CEM-1 CEM-3,ceramic , crockery Metal-backed L
Copper Thickness:
1/2 oz min;12 oz max
Board Thickness:
0.2mm-6.00 mm(8mil-126mil)
Min. Hole Size:
0.1mm(4mil)
Min. Line Width:
0.075mm(3mil)
Min. Line Spacing:
0.1mm4mil)
Surface Finishing:
Immersion Gold/Au,HASL,OSP,etc.
Warp & Twist::
0.7%
Hole Positon:
+/-0.075mm(3mil) CNC Driling
Insulation Resistance:
10Kohm-20Mohm
Conductivity:
Test Voltage:
10-300V
ance Control:
+/-10%
Different Impendance:
+-/10%
Outline Tolerance:
0.125mm(5mil) CNC Routing;+/-0.15mm(6mil) by Punching
Hole Diameter(H):
PTH L:+/-0.075mm(3mil);Non-PTH L:+/-0.05mm(2mil)
Conductor Width(W):
+/-20% of original artwork PTH L:+/-0.075mm(3mil)
