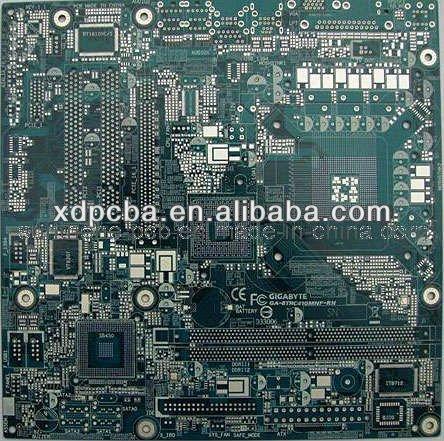

4-Layer-High-TG-PCB with Immersion Gold

Price: US $ 0.5 - 15 / Piec

Quick Details

  • Place of Origin:

    Guangdong, China (Mainland)

  • Brand Name:

    Xingda

  • Model Number:

    high thermal conductivity pcb

  • Base Material:

    FR-4,FR-2.taconic,rogers, CEM-1 CEM-3,ceramic,crockery,metal-backed

  • Copper Thickness:

    min-1/2oz;max-12oz

  • Board Thickness:

    0.2mm-6.00 mm(8mil-126mil)

  • Min. Hole Size:

    0.1mm(4mil)

  • Min. Line Width:

    0.075mm(3mil)

  • Min. Line Spacing:

    0.1mm(4mil)

  • Surface Finishing:

    OSP, HASL, ENIG, ENEPIC,Immersion silver, immersion tin etc

  • Impedance Control:

    +/-10%

  • Certificates::

    UL, ROHS, T/S16949, ISO14001:2004 &ISO9001:2000

  • Solder mask::

    blue, green, red, black etc.

  • Min.Trace Width & Line Spacing:

    0.075mm/0.1mm(3mil/4mil)

  • Min.Hole Diameter for CNC Driling:

    0.1mm(4mil)

  • Biggest panel size::

    610mm*508mm

  • Warp & Twist::

    0.5%

  • Character:

    high thermal conductivity

  • Leadtime:

    8-10 days

  • Package::

    Vacuum package
