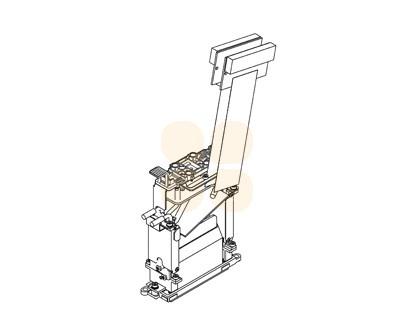

Mimaki JFX200-2513 Head Adapter Assy - M015028
Price: 1312
Product Specifications
Manufacturer:
Mimaki
Printer compatibility:
Mimaki JFX200-2513
DP part number :
PPHMI18963
This printhead GEN5 is suitable for Mimaki JFX200-2513 printers. It has two and four colour support, 8 levels of grayscale and up to 600 npi nozzle density. This is the original Mimaki part (number M015028).
- Dimensions: 89 x 25 x 69 mm (excluding cables)
- Head materials: SST, Nickel alloy and Epoxy Adhesive
- Nozzle plate surface: Coated SST
- Number of nozzles: 4 x 320 nozzles
- Nozzle spacing: 0.1693 mm
- Nozzle density: up to 600 npi
- Piezo yype: D33 Stacked PZT
- Temperature control: Integrated Heater and Thermistor
- Operator temperature range: Up to 80° C
- Native drop volume: 7 pl
- Drop volume range: 7 - 35 pl
- Drop velocity: 7 m/s
- Jetting frequency: Up to 60 kHZ
- Life: 100 billion actuations per nozzle
Manufacturer:
Mimaki
Printer compatibility:
Mimaki JFX200-2513
DP part number :
PPHMI18963
This printhead GEN5 is suitable for Mimaki JFX200-2513 printers. It has two and four colour support, 8 levels of grayscale and up to 600 npi nozzle density. This is the original Mimaki part (number M015028).
