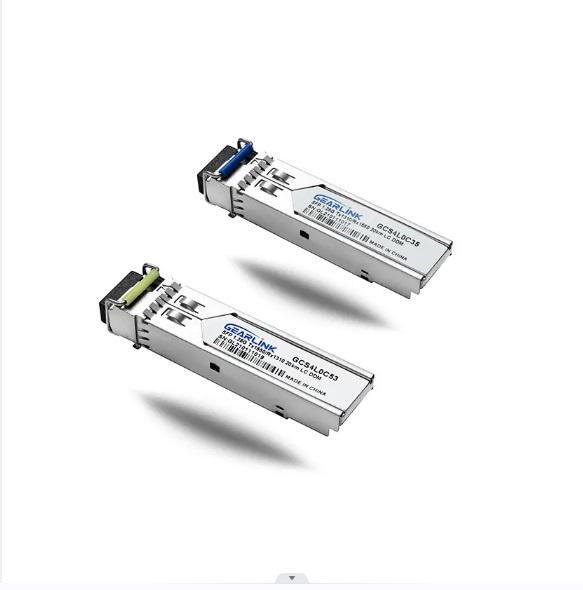

SFP 1.25G Tx1310/Rx1550 20Km LC Transceiver
Price: $5-9999
SFP 1.25G Tx1310/Rx1550 20Km LC Transceiver is a product of SFP BIDI optical module series. BIDI optical module is an optical module using WDM (wavelength division multiplexing) bidirectional transmission technology, which realizes bidirectional transmission in the optical channel on one optical fiber at the same time. The SFP 1.25G Tx1310/Rx1550 20Km LC Transceiver optical module has only one port, and the signal is transmitted and received on one optical cable through the integrated bidirectional coupler. Therefore, it must be paired with the SFP 1.25G Tx1550/Rx1310 20Km LC Transceiver. . BIDI optical modules reduce the number of ports on the fiber patch cord panel, reduce the footprint of the tray dedicated to fiber management, and reduce the number of fiber optic cables that need to be used.
Tx Disable has an LVTTL logic high-level input that can disable the optical output, and the system can also disable the module through I²C. The Tx Fault is supplied to signal laser deterioration. The LOS output is used to show the loss of an optical signal input to the receiver or the state of the link with the partner. I²C register access can also be used to obtain LOS (or Link)/Disable/Fault information for the system.
Get Free Quote
Technical Specification Of SFP 1.25G Tx1310/Rx1550 20Km LC Transceiver
General Specifications
Absolute Maximum Ratings
Notes:
1. Suitable for wave soldering.
2. Only for soldering by iron.
Parameter Of SFP 1.25G Tx1310/Rx1550 20Km LC Transceiver China
Fiber Transceiver GE SFP
Technical Documents Of SFP 1.25G Tx1310/Rx1550 20Km LC Transceivers
SFP 1.25G Tx1310/Rx1550 20Km LC Transceiver Pdf
Related 1.25G SFP Transceiver Products
SFP 1.25G Tx1550/Rx1490 80Km LC Transceiver SFP 1.25G Tx1550/Rx1490 80Km LC Transceiver More
SFP 1.25G Tx1550/Rx1310 40Km LC Transceiver SFP 1.25G Tx1550/Rx1310 40Km LC Transceiver More
SFP 10/100/1000Base-TRJ45 Transceiver
As a bidi sfp manufacturer, we have types of related products for sale, if you have needs, please contact us.
Tx Disable has an LVTTL logic high-level input that can disable the optical output, and the system can also disable the module through I²C. The Tx Fault is supplied to signal laser deterioration. The LOS output is used to show the loss of an optical signal input to the receiver or the state of the link with the partner. I²C register access can also be used to obtain LOS (or Link)/Disable/Fault information for the system.
Get Free Quote
Technical Specification Of SFP 1.25G Tx1310/Rx1550 20Km LC Transceiver
General Specifications
Parameter | Symbol | Min | Typ. | Max | Unit |
Bit Rate | BR | 1.25 | Gb/s etc | ||
Max.Supported Link Length | Max | 10 | km |
Absolute Maximum Ratings
Parameter | Symbol | Min | Typ. | Max | Unit | Ref. |
Storage Temperature | TS | -40 | 85 | ºC | ||
Storage Ambient Humidity | HA | 5 | 95 | % | ||
Power Supply Voltage | VCC | -0.5 | 4 | V | ||
Signal Input Voltage | -0.3 | Vcc+0.3 | V | |||
Receiver Damage Threshold | +3 | dBm | ||||
Lead Soldering Temperature/Time | Told | 260/10 | ºC/sec | Note 1 | ||
Lead Soldering Temperature/Time | Told | 360/10 | ºC/sec | Note 2 |
Notes:
1. Suitable for wave soldering.
2. Only for soldering by iron.
Parameter Of SFP 1.25G Tx1310/Rx1550 20Km LC Transceiver China
Fiber Transceiver GE SFP
Technical Documents Of SFP 1.25G Tx1310/Rx1550 20Km LC Transceivers
SFP 1.25G Tx1310/Rx1550 20Km LC Transceiver Pdf
Related 1.25G SFP Transceiver Products
SFP 1.25G Tx1550/Rx1490 80Km LC Transceiver SFP 1.25G Tx1550/Rx1490 80Km LC Transceiver More
SFP 1.25G Tx1550/Rx1310 40Km LC Transceiver SFP 1.25G Tx1550/Rx1310 40Km LC Transceiver More
SFP 10/100/1000Base-TRJ45 Transceiver
As a bidi sfp manufacturer, we have types of related products for sale, if you have needs, please contact us.
