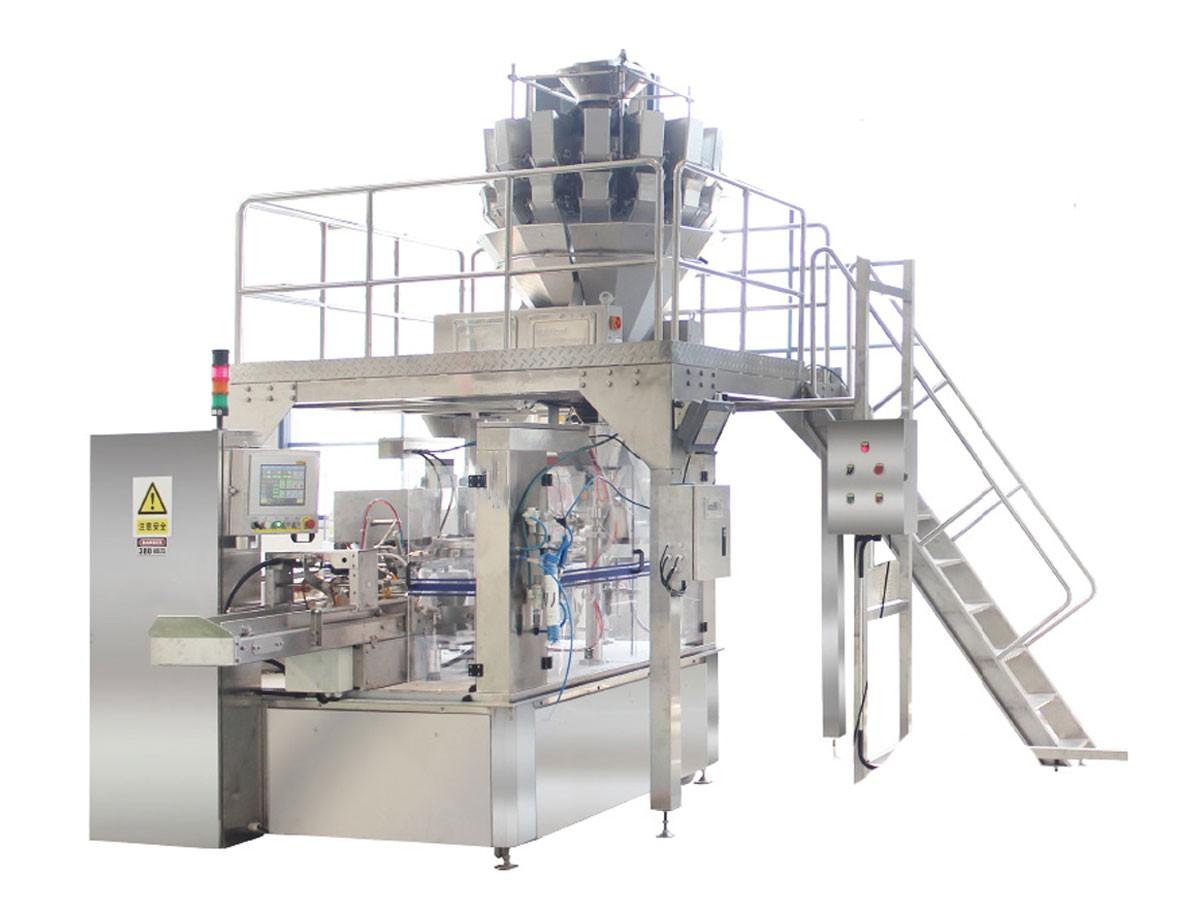

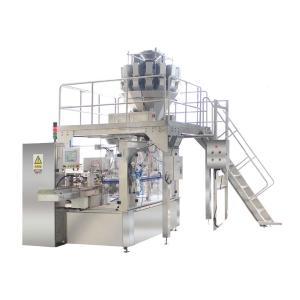

Solid-liquid Mixture Packaging Machine BT-8A
Price:
Technical Parameters
Application：
Work process：

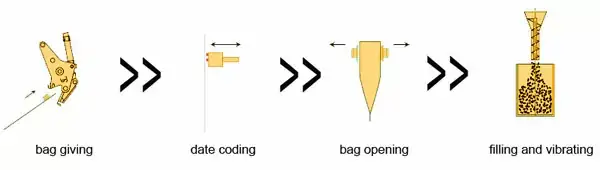

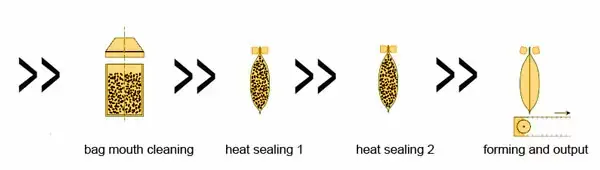

bag giving→date coding →bag opening →filling and vibrating →bag mouth cleaning→heat sealing 1→heat sealing 2→forming and output
Bag type：
Character：
| Model No. | BT-8A |
| Applications | Liquid and solid mixture：kimgee，chicken with paste，olio vegetables，meat and vegetable mixture. |
| Pouch Size | Width: 100-240mm Length:120-350mm |
| Filling Weight | Max2000g/bag |
| Filling Speed | 15-45 bags/min(filling speed depend on the pouch type and pouch size) |
| Pouch Material | Single-PE, PE compound materials, CPP composite material, Aluminum foil, etc |

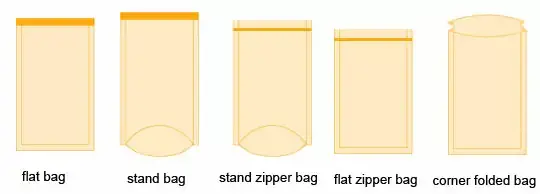

| Pouch types | Flat bag,stand bag,zipper bag,special-shaped bag |
| Machine Material | Machine base and appearance parts:SUS304/SUS 316 |
| Power | 380v, 3phase; 50/60HZ, 3.8KW |
| Air Compression | 500N Litre/min, 6kg/cm2 |
| Size of Machine(mm) | L2700xW2100xH1950 |
| Weight of Machine | About 1800kg |
Work process：
bag giving→date coding →bag opening →filling and vibrating →bag mouth cleaning→heat sealing 1→heat sealing 2→forming and output
Bag type：
Character：
- Digital drive, self-diagnostic display system and Versatility.
- Large color touch screen： you just need to choose relevant products/ pouch size/pouch weight on it， will automatically adjust and take detection.
- Provide automatic warming and display the reason when any fault on screen, reduce staff maintenance difficulty
- Automatically add lubricating oil intelligently, and equipped with the function of ribbon code printer detection.
- Machine is equipped with a testing system, which can truly achieve “no bag – no filling – no sealing” and high yield of packaging.
- Equipment can be washed with water directly after production.
