Automatic Stringer Machine
Price:

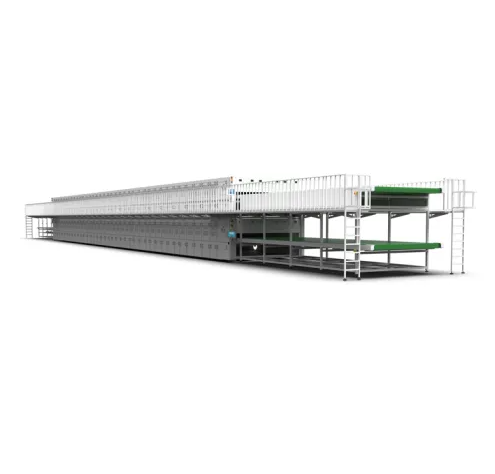

Automatic Stringer Machine
Speed of 1400-1700pcs/hour and a fragmentation rate of ≤2‰ for A grade cells, this machine also boasts of a closed-loop temperature control system with ±10℃ precision. It is compatible with a range of busbar and cell sizes including 5BB, 6BB, 9BB, 10BB, 11BB, 12BB, and 13BB, as well as 156, 158, 166, 182, 210, 218.2, and 230mm solar cells.
The Automatic Stringer Machine is a innovative solar panel production line equipment that can support high-speed, high-precision busbar stringing work. With a theoretical cycle speed of up to 1800pcs/hour, this machine has an actual production capacity of 1400-1700pcs/hour, which makes it ideal for manufacturing high-quality solar panels.
The Solar Stringer Machine has a high degree of compatibility and can be used with 5BB, 6BB, 9BB, 10BB, 11BB, 12BB, and 13BB, making it a feasible solution for busbar center spacing ≥12.4mm. Additionally, this machine can accommodate multiple sizes of solar cells such as 156, 158, 166, 182, 210, 218.2, and 230mm.
The ribbon specifications supported by the Automatic Stringer Machine are 0.38-1.6mm, with a thickness from 0.1-0.25mm. The ribbon width may vary from one solar cell to another, making compatibility an essential feature for this machine.
With its closed-loop temperature control system, the Automatic Stringer Machine can deliver ±10℃ control accuracy, ensure stringing quality, and reduce solder void rates. This system is a crucial element that allows the Automatic Stringer Machine to achieve a maximum fragmentation rate of ≤2‰(A grade cell).
The product advantages of the Solar Cell Stringer Machine are numerous. First, the machine has a high production speed, even with the actual production capacity at 1400-1700pcs/hour. Second, the Automatic Stringer Machine is highly compatible with many specifications and sizes of solar cells, making it a viable option for various solar panel production lines. Third, the Automatic Stringer Machine can string busbars and cells of varying sizes quickly and easily.
Finally, the Automatic Stringer Machine can accommodate various panel widths, including small-width cut cells with widths ≥19.5mm. This machine is applicable in various scenarios, including those that utilize solar panel production lines, where high-speed, high-precision automation is sought after to improve production quality and efficiency.
In conclusion, the Automatic Stringer Machine is a top-end, high-precision, full-auto stringer for solar panels that can deliver exceptional results. The machine supports high-speed operations, is highly compatible with different solar cell specifications and sizes, and delivers high-quality stringing results with a ≤2‰ (A grade cell).
Single Equipment
Our solar panel production line is equipped with cutting-edge machinery designed to streamline the entire process of manufacturing high-quality photovoltaic modules.
Our solar panel production line machinery is designed for efficiency, scalability, and precision, ensuring that every stage of production meets the highest quality standards. Whether you are manufacturing small quantities or scaling up production, our equipment provides the reliability and performance needed to produce high-efficiency solar panels for the global renewable energy market.
Solar Panel Production Line Machinery Includes:
● Automatic Stringer Machine
● Automatic Glass Loading Machine
● EVATPT Online Cutting and Laying Machine
● Automatic Robot Layup Machine
● Automatic Bussing Machine
● Automatic Taping Machine
● Automatic Edge Taping Machine
● Automatic Solar Panel Laminator
● Laminating Frame Backflow System
● Automatic Trimming Machine
If you are looking for more details, kindly visit our website.
