IMIC-6D wireless microphone system
Price:

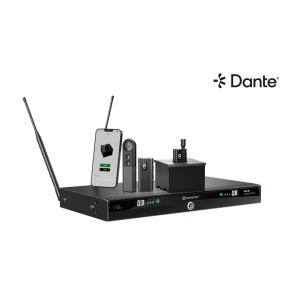

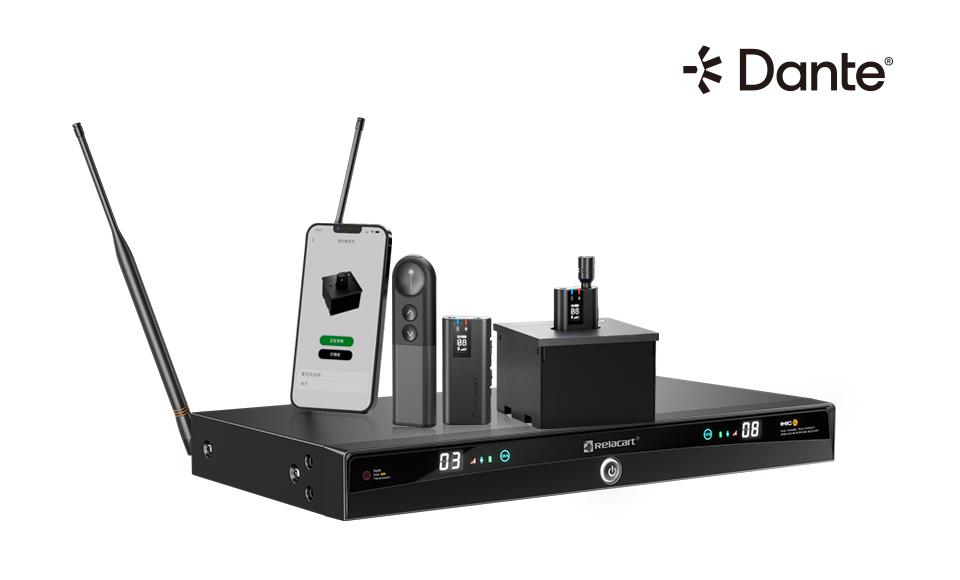

IMIC-6D Dual-Channel True Diversity Wireless Microphone System
Key Features:
Dual-Channel True Diversity: Ensures reliable and stable signal transmission.
Two XLR Inputs: Allows connection of additional wired microphones with 48V phantom power.
Dante Output: Provides network-based audio routing.
USB Digital Output: For direct connection to digital devices.
Specialized Management Software:Compatible with PC, smartphones, or tablets for system control.
Public Address System Input: Integrates with existing PA systems.
Alarm Input: For emergency or alert notifications.
Central Control Interface: Simplifies management of multiple devices.
Microphone Locking on Charging Base: Ensures secure storage and charging.
Feedback Suppression: Reduces unwanted audio feedback.
Page-Turning Laser Pointer: A built-in tool for presentations.
Smart Charging Base: Offers intelligent charging for microphones.
Suitable Applications:
Education
Lectures
Conferences
Public Speaking
Product Description
IMIC-6D is a true diversity dual-channel wireless microphone system developed by Relacart for educational applications. It features two XLR inputs for connecting additional wired microphones (with 48V phantom power), Dante output ,USB digital output, and specialized management software compatible with PC, smartphones, or tablets. It supports functions such as public address system input, alarm input, central control interface, microphone locking on charging base, feedback suppression, etc. Additionally, it comes with a page-turning laser pointer, smart charging base, and more, making it suitable for a wide range of applications including education, lectures, conferences, etc.
Specifications
System technical specification:
RF carrier frequency range: 470MHz-960MHz
Receiving method: superheterodyne
Frequency stability: 0.005%
Effective working distance: ≥20 meters (ideal environment)
Audio companding: DSP digital audio companding
Audio sampling rate: 48KHz
Audio frequency response: 500Hz~15K, ±3dB
Dynamic range: 88dB
Total harmonic distortion: ≤0.8%,@1KHz
Working temperature range: -10℃~+50℃
Receiver technical specifications:
Receiving frequency range: 470MHz-960MHz
Receiving method: superheterodyne
Image rejection: 45dBm
RF sensitivity: When inputting 10dBu, S/N≥45dB
Squelch adjustment: built-in setting parameters
Frequency synchronization method: manual button setting
Digital audio output: supports Type-C, USB audio, RJ45, DANTE audio
Power supply mode: DC12V 1A
Dimensions (mm): 410mm (w)*206mm (d)*43mm (h)
Net weight: 1.9KG
Transmitter technical specification:
Carrier frequency range: 470MHz-960MHz
Oscillation mode: PLL frequency synthesis
Transmit power: 13.5dBm
Carrier error: 0.005%
Harmonic radiation: -32dBm
Modulation method: FSK
Max. Deviation: ±65KHz
Max. input level: 25mV
Frequency setting: manual
Power supply mode: built-in 3.7V 435mA lithium battery power supply
Normal working current: 100mA
Max. charging current: 600mA
Battery life: ≥4 hours
Dimensions (mm): 67×32×13.5
Net weight (g): 31.5
If you want to learn more, please visit our website.
