R404a Refrigeration Compressor
Price:

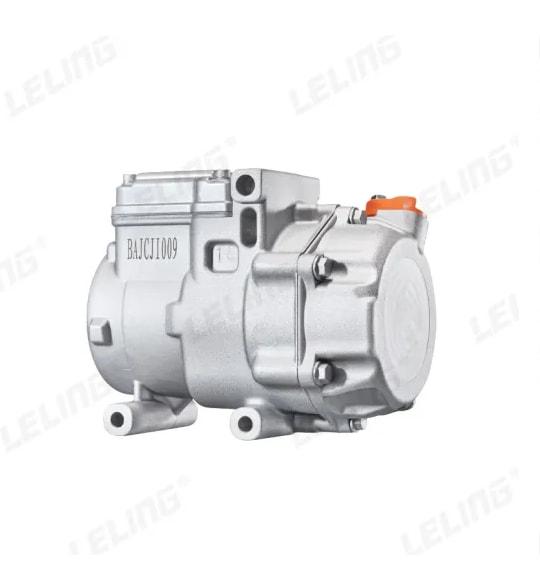

R404a Refrigeration Compressor
The refrigeration and freezing scroll compressor is a type of compressor equipment specifically used in the refrigeration and freezing fields. It is mainly composed of a stationary scroll plate, an orbiting scroll plate, a driving motor, a compressor body, and related sealing, lubricating, and control systems. The stationary scroll plate remains stationary while the orbiting scroll plate makes a translational motion around the center of the stationary scroll plate under the drive of the driving motor, forming multiple crescent-shaped compression chambers between them.
During operation, gaseous refrigerant enters the crescent-shaped compression chambers on the periphery of the stationary scroll plate through the suction port. As the orbiting scroll plate rotates, the volume of these compression chambers gradually decreases, causing the refrigerant to be continuously compressed, and its pressure and temperature to rise accordingly. Eventually, the high-temperature and high-pressure refrigerant after being compressed is discharged from the exhaust port at the center of the stationary scroll plate and enters subsequent components such as the condenser in the refrigeration and freezing system, completing a compression cycle and thus realizing the refrigeration function.
The refrigeration and freezing scroll compressor has the following major advantages:
• High Efficiency and Energy Saving: Multiple compression chambers work simultaneously, and the gas pressure difference between adjacent compression chambers is relatively small, resulting in less gas leakage and a relatively high volumetric efficiency. It can achieve a good refrigeration effect with less electricity consumption, effectively reducing the operating costs of refrigeration and freezing equipment.
• Smooth Operation: The orbiting scroll plate makes a translational motion with little change in torque during the movement process and high balance, so the compressor as a whole has low vibration and noise, and operates very smoothly. This is especially important for refrigeration and freezing places with high environmental noise requirements, such as the refrigerated areas in supermarkets and hospitals.
• Compact Structure: There are no complex reciprocating motion mechanisms, and the number of components is relatively small, making the entire compressor small in size and light in weight, facilitating its installation and layout in various refrigeration and freezing equipment, such as refrigerated trucks and medical freezers, saving precious space resources.
• High Reliability: There are fewer moving parts and slow wear, coupled with a good sealing and lubricating system, enabling the compressor to operate stably for a long time, reducing equipment failures and downtime, and ensuring the continuous normal operation of the refrigeration and freezing system.
Currently, our company can provide refrigeration and freezing compressors with displacements of 14CC, 18CC, 28CC, 34CC, and 50CC, accurately meeting the refrigeration requirements of different scales and working conditions. In terms of voltage adaptation range, it covers various options such as 12V, 24V, 48V, 96V, 144V, 312V, and 540V. Currently, it can support a maximum voltage of 800V, being able to perfectly match various power system architectures. Its control modes include advanced forms such as gear, PWM (Pulse Width Modulation), and CAN (Controller Area Network), and the refrigeration capacity output range is wide, ranging from 0.8kW to 15kW, presenting reliable and customized refrigeration solutions to customers.
The R404a series of refrigeration and freezing compressors have a wide variety of application scenarios:
In the food industry: In supermarket refrigerators and freezers, it maintains the freshness and quality of food for a long time, extending the shelf life; in food quick-freezing tunnels, it quickly freezes food, such as on the production lines of quick-frozen dumplings and ice cream; in cold storages and freezers, it stores large quantities of foods such as meat, seafood, fruits, and vegetables; in the food transportation process, such as in refrigerated trucks, refrigerated containers, and trains, it stably maintains the required low temperature for food.
In the medical industry: It is used in drug cold storages in hospitals, pharmaceutical factories, and scientific research institutions to safely store various drugs, vaccines, etc., ensuring the effectiveness and safety of drugs; in some medical devices, such as MRI machines and CT scanners, it maintains the low-temperature environment required for the normal operation of the devices.
In the chemical industry: During the chemical production process, it provides cooling guarantee for chemical reactions or raw material storage that require a low-temperature environment, ensuring the stability of the production process and the reliability of product quality.
In the logistics industry: Cold chain logistics highly depends on refrigeration and freezing compressors to effectively ensure the long-distance transportation and distribution quality of temperature-sensitive items such as fresh foods and drugs.
In the scientific research field: It provides a cold source for low-temperature equipment, laboratory freezers, and freeze dryers in scientific research laboratories, used for freezing samples, preserving biological samples, and storing experimental reagents, meeting the needs of scientific researchers for a low-temperature experimental environment.
In the fishery industry: On fishing boats, it quickly freezes and preserves the caught seafood to maintain its taste and quality.
In the agricultural industry: It is used for the preservation of agricultural products, such as the refrigerated preservation of fruits and vegetables, extending the sales cycle of agricultural products.
General Packaging Schemes for Electric Scroll Compressors:
Cartons: High-strength corrugated cartons on the outside + bubble wrap on the inside; the size of the carton is generally customized according to the size and shape of the compressor to ensure that the compressor can be stably placed inside the carton.
Wooden Boxes: For electric scroll compressors with larger displacements and heavier weights, wooden boxes will be used for packaging.
A complete set of compressors includes the compressor itself, installation brackets, high-pressure and low-pressure port adapters, power cords, and signal line connectors.
Payment Methods: L/C (Letter of Credit), T/T (Telegraphic Transfer), WESTERN UNION, PAYPAL, etc.
Warranty: 12 months from the date when the customer receives the compressor.
General Steps and Key Points for Using Electric Scroll Compressors:
Preparation Before Installation:
1. Confirm Specification Matching: According to the refrigeration or heating requirements of the application scenario, select an appropriate electric scroll compressor with the right displacement (such as 14CC, 18CC, etc.), voltage (12V, 24V, etc.), and refrigeration capacity output range (0.8kW - 15kW). Ensure that it matches the requirements of the entire system, such as the thermal management system of new energy vehicles or the air-conditioning system of commercial vehicles.
2. Check Component Integrity: Before installation, carefully inspect the compressor, including key components such as the stationary scroll plate and the orbiting scroll plate, to ensure there is no damage, deformation, or foreign objects inside. Meanwhile, check whether the motor and connecting wires are at normal conditions.
3. Prepare Installation Tools and Materials: According to the installation requirements of the compressor, prepare corresponding tools, such as wrenches, screwdrivers, etc., as well as installation materials like sealing materials and refrigerant pipes.
Installation Process:
1. Positioning and Fixing: Install the electric scroll compressor at the designed position. Generally, it should be firmly installed to avoid vibration and displacement during operation. For vehicle applications, special brackets and shock-absorbing devices may be required for fixation.
2. Pipe Connection: Connect the refrigerant inlet and outlet pipes correctly according to the system design requirements. During the connection process, ensure that the pipe joints are well sealed to prevent refrigerant leakage. Usually, sealing gaskets and appropriate connection methods (such as welding, threaded connection, etc.) are used.
3. Electrical Connection: Connect the motor wires of the compressor to the power supply system. This requires strict operation according to the electrical wiring diagram to ensure that the wire connections are firm and the insulation is good. Meanwhile, pay attention to matching the voltage requirements to avoid compressor damage caused by incorrect voltage.
System Commissioning:
1. Initial Refrigerant Charging: After the system installation is completed, the refrigeration system needs to be charged with refrigerant. The charging amount should be determined according to the specifications of the compressor and the requirements of the system. Generally, it can refer to the equipment manual or relevant technical standards. During the charging process, pay attention to operational safety to avoid refrigerant leakage that may cause harm to human bodies and the environment.
2. Startup Check: After charging the refrigerant, start the compressor for a preliminary check. Observe whether the startup process of the compressor is smooth and whether there are any abnormal noises or vibrations. Meanwhile, check whether the current of the motor is within the normal range to ensure the normal startup of the compressor.
3. Performance Testing: By adjusting the control modes (such as gear, PWM, CAN, etc.), test the refrigeration or heating performance of the compressor under different working conditions. Temperature sensors and other devices can be used to monitor the temperature changes of the system to ensure that the compressor can achieve the expected refrigeration capacity or heating capacity output and meet the requirements of the application scenario.
Daily Use and Maintenance:
1. Normal Operation: In daily use, start or stop the compressor and adjust the intensity of refrigeration or heating according to actual needs through the control system (such as the air-conditioning control panel of a vehicle or the temperature controller of an energy storage system). During the operation process, avoid frequent start-stop operations to prevent affecting the service life of the compressor.
2. Regular Inspection and Maintenance: Regularly inspect the appearance of the compressor to check for signs of refrigerant leakage (such as oil stains), whether the connecting parts are loose, and the running condition of the motor. Meanwhile, according to the requirements of the equipment maintenance manual, regularly replace lubricating oil (if required) and filters and other wearing parts to ensure the efficient operation of the compressor.
3. Fault Handling: If any abnormalities are found during the use of the compressor, such as excessive noise, poor refrigeration or heating effects, motor failure, etc., stop using it immediately and follow the fault diagnosis process for inspection. Professional testing devices may be required to determine the cause of the fault, such as checking the electrical system, refrigerant pressure, sensors and other components, and then carry out corresponding repairs or replacements according to the fault situation.
As one of the leading refrigeration compressor manufacturers, we provide high-quality, energy-efficient cooling solutions for a wide range of applications. Our compressors are designed for durability and optimal performance, meeting the demands of refrigeration and freezing systems. Whether you need a reliable compressor for cold storage, transportation, or commercial refrigeration, we have the perfect solution for you.
