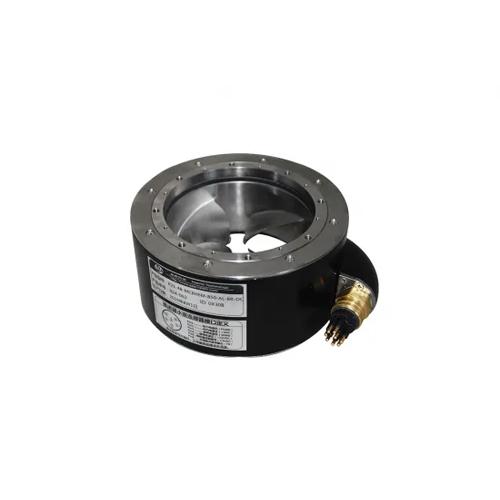

R21 RIM Thruster
Price:
As a trusted RIM Drive Thruster manufacturer, Haoye specializes in RIM Drive Thrusters (Rotary Impeller Modules) that provide unmatched maneuverability and efficiency for underwater vehicles. Designed for demanding applications such as AUVs, ROVs, subsea drones and other marine robotics, our RIM Thrusters provide precise thrust control and are available with customizable options to meet your specific needs.
Technical Parameters
Rim Drive Propulsion integrates the motor rotor and blades into one unit, eliminates the traditional through cabin propulsion shaft system and sealing system, and uses direct power transmission through electrical energy, thus occupying almost no cabin space.
Technical Parameters
Rated voltage: | 48VDC/72VDC/100VDC/150VDC /200VDC/240VDC |
Housing: | Aluminum alloy /Titanium alloy |
Rotation direction: | Left-handed / Right-handed |
Propeller material: | Stainless steel |
Temperature: | Storage temperature: -40~70℃, working temperature: -5~40℃ |
Sealing form: | Zero penetration magnetic coupling rotary seal structure |
Working water depth(m): | 0-200/0-1500/0-3000/0-6000/ Full sea depth. Working water depth >200m. Oil-filled seal |
Drive: | External |
Rim Drive Propulsion integrates the motor rotor and blades into one unit, eliminates the traditional through cabin propulsion shaft system and sealing system, and uses direct power transmission through electrical energy, thus occupying almost no cabin space.
