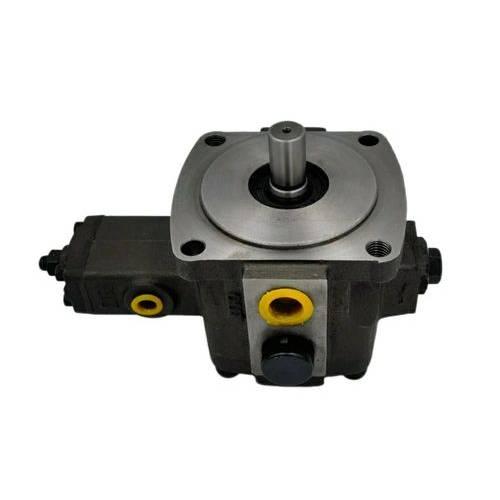

Vane Type Pump 30-40
Price:
1.The shaft clearance compensation design enables automatic adjustment of vane pump displacement according to the preset pressure.
2.Equipped with a built-in pressure regulator, eliminating the need for an external regulator valve.
3.Features high efficiency, energy saving, safety, and reliable performance.
4.Widely applicable to grinding machines, automatic lathes, press machinery, leather equipment, shoemaking machinery, hydraulic stations, and other specialized or single-crystal machines.
Vane Type Pump Features
InstructionRotation direction: The standard direction is clockwise (viewed from the shaft end) – only this direction is allowed. Always check the rotation direction to ensure the motor starts instantly.
Hydraulic oil: Use oil with a viscosity of 20 – 50 CST (ISO VG32) at 40°C, when pressure is below 7.0 MPa.
Oil discharge pressure: Insert the discharge pipe straight into the fuel tank. Keep the back pressure from the filling pipe under 0.3 kg/cm².
Working oil temperature: The continuous operating range is 15 – 60°C.
Axis alignment: The eccentric error between the pump shaft and motor shaft must be ≤ 0.05 mm, and the angle error ≤ 1°.
Oil suction pressure: Maintain it at -0.3 kg/cm².
Pressure adjustment: Turn the pressure adjustment bolt counterclockwise to reduce output pressure, and clockwise to increase it. Tighten the nut cap firmly after adjustment.
About RECTE HydraulicsAs a trusted hydraulic pump manufacturer, we ensure our pumps are designed for high efficiency, precision, and long-term reliability in demanding applications.
At RECTE Hydraulics, we also offer a wide range of wholesale hydraulic motor solutions, providing customers with durable and efficient hydraulic systems tailored for construction machinery, agriculture, industrial equipment, and more. With strong engineering expertise and strict quality control, RECTE Hydraulics delivers products that enhance performance and reliability worldwide.
2.Equipped with a built-in pressure regulator, eliminating the need for an external regulator valve.
3.Features high efficiency, energy saving, safety, and reliable performance.
4.Widely applicable to grinding machines, automatic lathes, press machinery, leather equipment, shoemaking machinery, hydraulic stations, and other specialized or single-crystal machines.
Vane Type Pump Features
It works for grinding machines, automatic lathes, pressure machinery, leather machinery, shoe-making equipment, hydraulic stations, and other special or single crystal machines.
InstructionRotation direction: The standard direction is clockwise (viewed from the shaft end) – only this direction is allowed. Always check the rotation direction to ensure the motor starts instantly.
Hydraulic oil: Use oil with a viscosity of 20 – 50 CST (ISO VG32) at 40°C, when pressure is below 7.0 MPa.
Oil discharge pressure: Insert the discharge pipe straight into the fuel tank. Keep the back pressure from the filling pipe under 0.3 kg/cm².
Working oil temperature: The continuous operating range is 15 – 60°C.
Axis alignment: The eccentric error between the pump shaft and motor shaft must be ≤ 0.05 mm, and the angle error ≤ 1°.
Oil suction pressure: Maintain it at -0.3 kg/cm².
Pressure adjustment: Turn the pressure adjustment bolt counterclockwise to reduce output pressure, and clockwise to increase it. Tighten the nut cap firmly after adjustment.
About RECTE HydraulicsAs a trusted hydraulic pump manufacturer, we ensure our pumps are designed for high efficiency, precision, and long-term reliability in demanding applications.
At RECTE Hydraulics, we also offer a wide range of wholesale hydraulic motor solutions, providing customers with durable and efficient hydraulic systems tailored for construction machinery, agriculture, industrial equipment, and more. With strong engineering expertise and strict quality control, RECTE Hydraulics delivers products that enhance performance and reliability worldwide.
