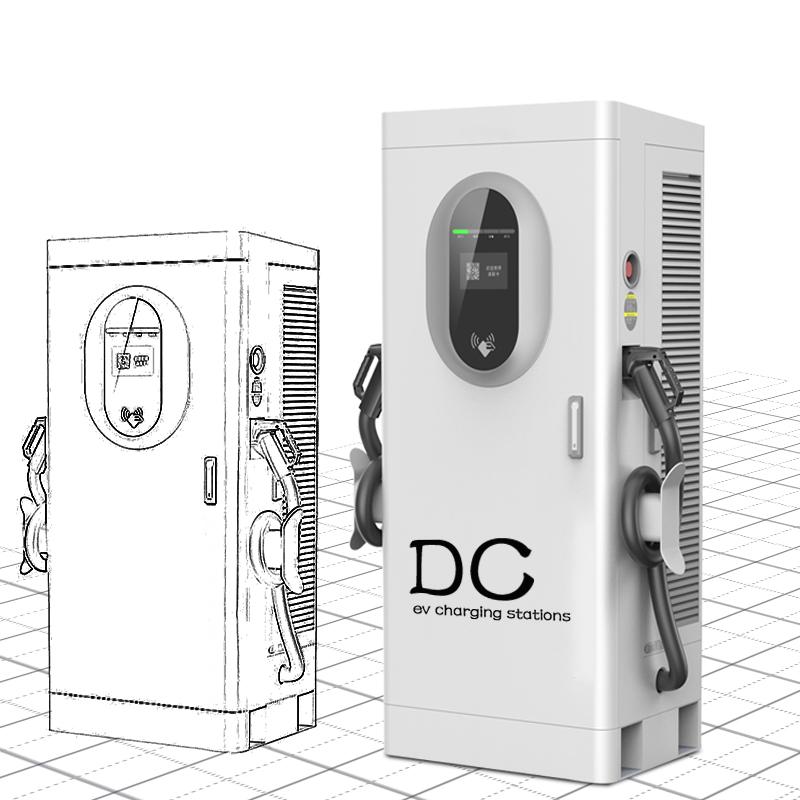

480 Volt 3 Phase EV Charger-Commercial EV Charging Station

Installation Method:Vertical
Feeding Method:Bottom in and out
Equipment Dimension:1800*800*600 mm
Input Voltage:AC380V±15%
Input Frequency:50±10 Hz
Output Voltage:200-（750 ）1000VDC
Single Gun Output Current Range:0-200A
Cable Length:5m ( Optional )
Metering Accuracy:1.0 Level
Current Limit Protection Value:≥110%
Voltage Stabilization Accuracy:≤±0.5%
Current Stabilization Accuracy:≤±1%
Ripple Ratio:≤±0.5%
Efficiency:≥95%
Power Factor:≥0.99 (above 50% load）
Harmonic Content THD:≤5% (above 50% load）
HMI:7- inch highlight color touch screen
Charging Mode:Automatic charging full / Fixed power / Fixed Amount / Fixed time
Charging Method:Swipe card / Password / Scan code
Mode Of Payment:Credit card / Scan code
Operation Mode:Offline no billing, Offline billing, Online billing
Communication Protocol:OCPP 1.6J
Network Way:Ethernet / 4G
Operative NormIEC:61851-1:2017,ICE 62196-2:2016
Working Temperature:-20℃ ~ +50℃
Working Humidity:5%~95% non-condensing frost
Working Altitude:＜2000m
Ingress Protection:IP54
Cooling Method:Air-cooled
Noisy Control:≤60dB
MTBF:30,000 hours

3 Phase Electric Car Charger solutions are becoming the preferred choice for both residential and commercial EV charging due to their faster charging speeds and higher efficiency. Unlike single-phase chargers, three-phase models can deliver more power in less time, making them ideal for high-demand environments.

Electric Vehicle Voltage Requirements
Most electric vehicles operate on a DC battery system, but their onboard chargers convert AC from the grid into DC for storage.

Single-phase AC: typically 230V (Europe) or 120V/240V (North America)

Three-phase AC: typically 400V in most countries
For example, a 3 phase 22kW AC charger using 400V can fully charge many EVs within just a few hours. Always check your vehicle’s onboard charger rating to ensure full compatibility.

Top Rated EV Chargers
When selecting a 3 phase electric car charger, focus on:

Power Output – 7kW, 11kW, and 22kW options available to match your needs.

Smart Functions – RFID access, OCPP protocol, and app-based monitoring.

Safety Features – Overcurrent, overvoltage, leakage, and surge protection.

Automobile Chargers for Commercial and Home Use
3 phase EV chargers are suitable for:

Commercial properties such as parking lots, hotels, and shopping malls.

Fleet operators managing electric taxis, buses, or delivery vans.

Private garages where faster turnaround is needed.

High Speed Car Charger Advantages
Shorter charging time compared to single-phase chargers

Stable power delivery for long-term battery health

Compatible with most EV brands, including Tesla (with adapter), BMW, Nissan, BYD, and Hyundai

Why Choose Our 3 Phase EV Charger?
We manufacture our chargers under strict quality control, following CE and TUV standards. Each unit is tested for performance and safety before shipment. With intelligent charging technology and durable construction, our chargers are built for long-term reliability.
