CRGO Silicon Steel Slitting Line
Price:

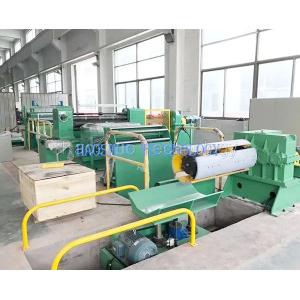

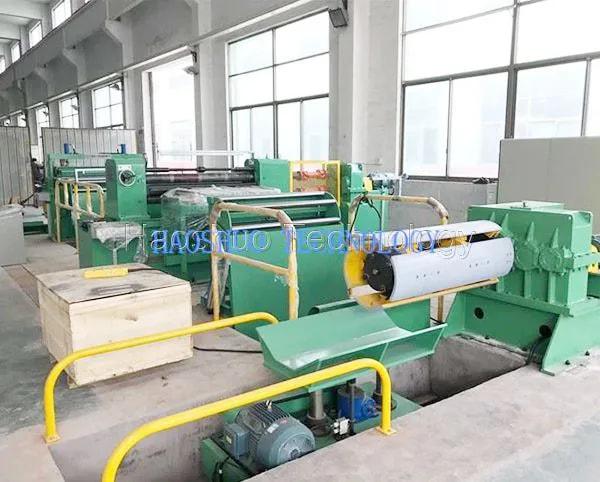

CRGO Silicon Steel Slitting Line
The line is especially for silicon steel (CRGO) coil longitudinal slitting. The wide coil (1000/1250mm) shall be opened and cut into required width strips and then rewinded into rolled coil. The main working flow is coil loading – decoiling – guiding – slitting – tensioning – recoiling – discharging.
Main Line Components:
● Coil car for coil loading
● Hydraulic DC powered decoiler
● Coil sheet feeding system
● Slitter (VF speed controlling)
● Tensioning system
● Hydraulic DC powered recoiler
● Coil car for discharging
● Controlling cabinet
Machine Features:
DC driving for slitting and recoiling
PLC automatic controlling, VF speed adjusting
High quality alloy blade for precision working
International famous brand Electrical and Pneumatic elements
Welcome to HaoShuo – a premier Transformer Core Machine Manufacturer and supplier based China. We specialize in engineering high-precision transformer core production equipment that streamlines the manufacturing of power transformers, ensuring unmatched efficiency, accuracy, and reliability. Our solutions, including Core Cutting Machines, Silicon Steel Slitting Machines, and Transformer Core Lamination Stacking Tables, are designed to meet the rigorous demands of the global electrical industry.
If you are looking for more details, kindly visit our website.
The line is especially for silicon steel (CRGO) coil longitudinal slitting. The wide coil (1000/1250mm) shall be opened and cut into required width strips and then rewinded into rolled coil. The main working flow is coil loading – decoiling – guiding – slitting – tensioning – recoiling – discharging.
Main Line Components:
● Coil car for coil loading
● Hydraulic DC powered decoiler
● Coil sheet feeding system
● Slitter (VF speed controlling)
● Tensioning system
● Hydraulic DC powered recoiler
● Coil car for discharging
● Controlling cabinet
Machine Features:
DC driving for slitting and recoiling
PLC automatic controlling, VF speed adjusting
High quality alloy blade for precision working
International famous brand Electrical and Pneumatic elements
Model | ZJX1000 | ZJX1250 |
Coil thickness | 0.23-0.5mm | 0.23-0.5mm |
Max width of coil | 1000mm | 1250mm |
Slitting speed | 0-60m/min | 0-60m/min |
Slit width | Min 40mm | Min 40mm |
Width precision | ±0.1mm | ±0.1mm |
Edge linear straightness | ±0.1mm/m | ±0.1mm/m |
Strip burr | Less than 0.02mm | Less than 0.02mm |
Coil weight | 5 / 8 / 10 tons | 5 / 8 / 10 tons |
Welcome to HaoShuo – a premier Transformer Core Machine Manufacturer and supplier based China. We specialize in engineering high-precision transformer core production equipment that streamlines the manufacturing of power transformers, ensuring unmatched efficiency, accuracy, and reliability. Our solutions, including Core Cutting Machines, Silicon Steel Slitting Machines, and Transformer Core Lamination Stacking Tables, are designed to meet the rigorous demands of the global electrical industry.
If you are looking for more details, kindly visit our website.
