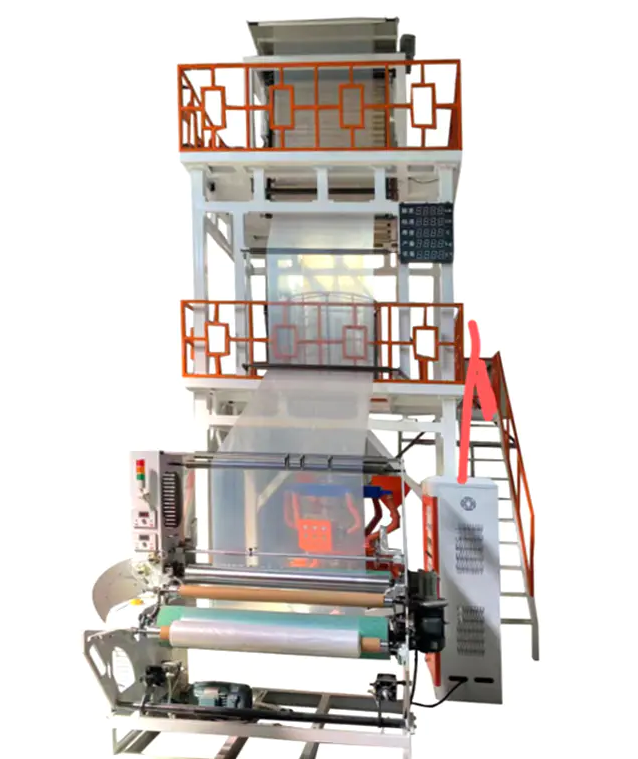

Model 600 Double Colour Film Blowing Machine
Price:
The Model 600 Double Colour Strip Film Blower by Chaoshun Machinery is a specialized blown film extrusion machine engineered to produce dual-colour striped plastic films for packaging and industrial applications. This advanced unit integrates two extruders and a color-stripe die head to combine HDPE and LLDPE materials with color masterbatch, enabling the production of visually appealing films with distinct bicolour strips in a single processing step.
Designed for flexibility and stable performance, this film blower supports film widths up to around 600 mm, with thickness ranges suitable for various packaging needs. Its robust construction features hardened gearbox components and precision manufactured screws and barrels, ensuring smooth material extrusion and consistent quality.
Designed for flexibility and stable performance, this film blower supports film widths up to around 600 mm, with thickness ranges suitable for various packaging needs. Its robust construction features hardened gearbox components and precision manufactured screws and barrels, ensuring smooth material extrusion and consistent quality.
| 1 | Voltage | AC /380V /3PHRASES/50HZ |
| 2 | Film width | HDPE:-1000MM |
| 3 | Film thickness mm | 0.01-0.25 |
| 4 | Raw material application | HDPE+LLDPE, HDPE |
| 5 | Screw material | Combined metal |
| 6 | Cylinder material | 38CRMOALA |
| 7 | Screw diameter | A Φ50/30 B Φ50/30 |
| 8 | Screw speed | 100r/min |
| 9 | Reducer: national standard hardened gearbox; 146# 1 set 173# 1 set (low noise) Gear material: alloy steel； Gear main process: tooth surface high-frequency quenching, hardened tooth surface by gear grinding machine fine grinding； Gear box lubrication method: forced oil pump back ring lubrication； Gear box cooling method: forced water back to the circle cooling oil temperature | B :A133.B :133 (Xiaoshan) |
| 10 | Main motor: Shanghai Foshan goodwill strong frequency converter | 11KW*2 sets |
| 11 | Length of traction leather shaft mm | 700MM |
| 12 | Film width | 600MM |
| 13 | Maximum output | 70KG/HR |
| 14 | Minimum Output | 50KG/HR |
| 15 | Body cooling | 200W×2 sets, 2 sets |
| 16 | Die head | 50MM |
| 17 | Double wind ring | Diameter 800mm, labyrinth inlet |
| 18 | Wind ring wind piece configuration | Model 800 Double air inlet |
| 19 | Mould head | Highly equipped with colour stripe mould head |
| 20 | Air duct | Φ70×6 PCS |
| 21 | Blower | 3KW DELTA INVERTER |
| 22 | Traction part Traction pinch roller | Pneumatic control |
| 23 | Motor and control system | Turbine reducer. |
| 24 | Meter weight Device | Hebei |
| 25 | Herringbone plate adjustment | Simple operation |
| 26 | Winding machine | Single winder |
| 27 | Winding rollers | Φ50(AIR SHAFT) 4 pcs. |
| 28 | Temperature controller | Double digital display type |
| 29 | Suction machine | 2 sets |
| 30 | Traction motor power AC motor, drive control | 1.5 0.40 ratio speed |
| 31 | Power of winding machine motor (kw) | 1.5KW |
| 32 | Maximum winding diameter mm | 600 |
| 33 | Barrel heating ring | Stainless steel heating ring |
| 34 | Head flange | Recessed |
| 35 | Die Head Heater | Stainless Steel Heater |
