Competitive Price China manufacturer Corrugated Pa
Price: 100000

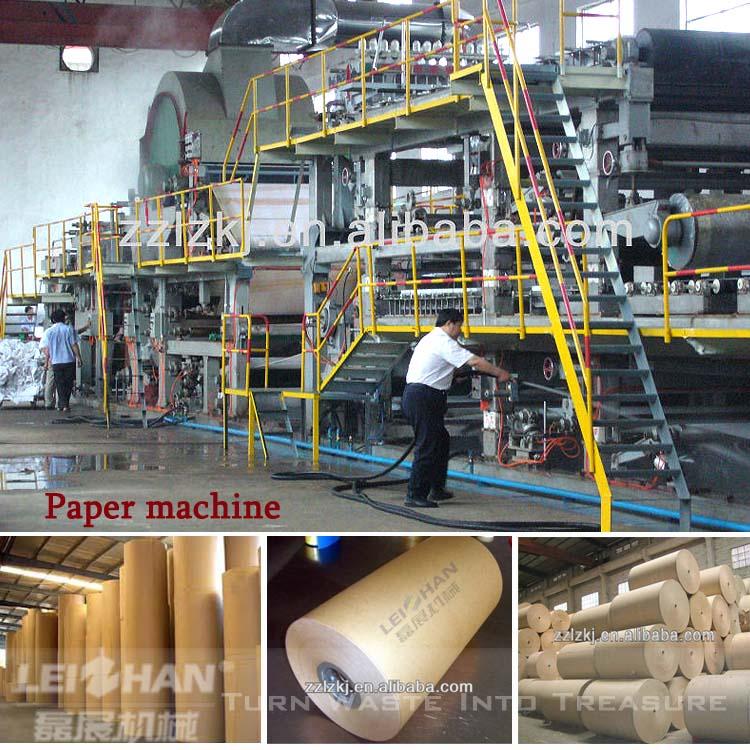

Competitive Price China manufacturer Corrugated Papermachine
1.33yearsexperiences
2.first-class engineer
3.ISO90012000
4.excellent customer service
5.high quality competitive
Product Description
1.TrimmedWidth:2400,2640,2880.3200,3400,3800,4200,4400
2.Raw material: Virgin Pulp, recycled paper,De-inked pulp.
Raw materials (waste paper)——pulper——vibrating sieve——pulp tank——pulp pump——bleach machine(thruster)——refiner machine——pulp tank——pulp pump——pressure sieve——pulp tank—— pulp pump——except sand machine——net box——cylinder——blanket——paper making machine——drying——roll paper——the big finished jumbo paper—— process machine
Corrugated paper machine(rewinder machine——cutting paper machine——small roll paper)
1. cylinder mould section:φ1000mm×1450mmstainless steel cylinder mould 1set, φ 300mm×1450mm couch roll1set,coated by rubber, rubber shore hardness 38°C±2.
2. dryer section: φ 1500mm×1450mmalloy dryer can 1 set, 1group scraper knife. φ 350mm×1450mm touchroll 1set, coated by rubber, rubber shore hardness 90°C±2.Mechanical loadingdevice
Our Services
1.Pre-sales Service
Company Information
ZhengzhouLeizhan Technology Paper Machinery Co.,LTD is a professional manufacturer withmore than 30 years manufacturing experience in making complete set ofscreening,impurity removal,pulping and refining equipment. Our company islocated in Zhengzhou which is the hometown of machinery in Henan Province.Wehave more than 200 staffs including 50 engineeringtechnicians which can be yourbest technical support.With high quality products and perfect pre-sale andafter-sale service,we have won lots customers from all over the world.
If you are interested, please contact me or visit us inperson to witness our production ability and experience in paper machinemanufacturing.
If you wantmore information about it,you can sent email to leizhanmachine@gmail.com, wewill sent you the details as soon as possible
1.33yearsexperiences
2.first-class engineer
3.ISO90012000
4.excellent customer service
5.high quality competitive
Product Description
1.TrimmedWidth:2400,2640,2880.3200,3400,3800,4200,4400
2.Raw material: Virgin Pulp, recycled paper,De-inked pulp.
Process Flow Diagram
Raw materials (waste paper)——pulper——vibrating sieve——pulp tank——pulp pump——bleach machine(thruster)——refiner machine——pulp tank——pulp pump——pressure sieve——pulp tank—— pulp pump——except sand machine——net box——cylinder——blanket——paper making machine——drying——roll paper——the big finished jumbo paper—— process machine
Corrugated paper machine(rewinder machine——cutting paper machine——small roll paper)
1. cylinder mould section:φ1000mm×1450mmstainless steel cylinder mould 1set, φ 300mm×1450mm couch roll1set,coated by rubber, rubber shore hardness 38°C±2.
2. dryer section: φ 1500mm×1450mmalloy dryer can 1 set, 1group scraper knife. φ 350mm×1450mm touchroll 1set, coated by rubber, rubber shore hardness 90°C±2.Mechanical loadingdevice
Main TechnicalParameter :
| Machine Model | 1092 | 1575 | 1760 | 2200 | 2500 | 2800 | |
| Width (mm) | 1350 | 1750 | 1900 | 2150 | 2450 | 2750 | |
| Finished Products Diameter | Φ 60~150mm (Tightness can be adjustable) | ||||||
| Finished Products Inner Diameter | Φ32~50 mm | ||||||
| Jumbo roll diameter (mm) | Φ 1200 (Other sizes can be ordered) | ||||||
| Jumbo Roll Inner Diameter | 3”,76.2 mm (other sizes can be ordered) | ||||||
| Perforation distance (mm) | 4 blade,90~160mm;2 blade,180~320mm; | ||||||
| Production speed | 160-180 m/min | ||||||
| Parameter set | Touching-screener Multi-menu Man-machine Interface Operation System | ||||||
| Programmable controller | Mitsubishi PLC program | ||||||
| Mechanical driving | Driven by stepless speed-regulator to guarantee the precise length of final products. | ||||||
| Embossment unit | Single embossment, Double embossment, Steel to steel embossment; | ||||||
| Embossment down roller | Felt roller, paper roller, rubber roller | ||||||
| Jumbo roll stand | 1-3 plies (ply quantity can be ordered) | ||||||
| Air pneumatic system | 3 Pa (air-compressor), the minimum pressure 5kg/cm2 pa (customers should be prepared by themselves) | ||||||
| Power | 5.5-15KW (Frequency speed-regulate ) | ||||||
| Overall size (m)(L×W×H) | 7 X (2.3-4) X 1.8 | ||||||
| Weight of equipment | 4000~8000kg (approximately) | ||||||
| Chosen items (Should be ordered separately) | |||||||
| Embossment | Single embossment, double embossment, steel to steel embossment | ||||||
| Embossment down roller | Felt roller, paper roller, rubber roller | ||||||
| Jumbo roll stand | 1-3 plies | ||||||
| Jumbo roll stand driving | Driven by variator | ||||||
| Rewinding unit | Non-core unit | ||||||
| Printing unit | Single color heliotype printing unit | ||||||
| Side rolling embossment | Steel to steel | ||||||
| Perforation mode | Air pneumatic separating unit | ||||||
| Smooth embossment | Steel to steel, Steel to rubber ; | ||||||
| Remote telecom service system | Should be ordered separately. |
1.Pre-sales Service
- Offering comprehensive technical and business consultation services;
- Proposing the most suitable scheme and equipment for our clients;
- Designing and fabricating targeted products according to the special requirements of clients;
- Training periodically high qualified service technician.
- Highly inspecting equipments in every working procedure, quality comes first;
- Fast & Safe Delivery; mulity-cylinder
- Assisting our clients for foundation construction of equipments;
- Dispatching engineers to install and debug equipments;
- Training the first-line operators on site;
- Regularly visit clients to solve production problems;
- Providing life-long maintenance service;
- Providing technical exchanging;
Company Information
ZhengzhouLeizhan Technology Paper Machinery Co.,LTD is a professional manufacturer withmore than 30 years manufacturing experience in making complete set ofscreening,impurity removal,pulping and refining equipment. Our company islocated in Zhengzhou which is the hometown of machinery in Henan Province.Wehave more than 200 staffs including 50 engineeringtechnicians which can be yourbest technical support.With high quality products and perfect pre-sale andafter-sale service,we have won lots customers from all over the world.
If you are interested, please contact me or visit us inperson to witness our production ability and experience in paper machinemanufacturing.
If you wantmore information about it,you can sent email to leizhanmachine@gmail.com, wewill sent you the details as soon as possible
