Cable Ladder

Price: 500

Cable Ladder - Various Materials and TypesCable ladder is widely used in the wiring system to let the wiring smooth and tidy. It is used to support large numbers of large cables between two points. It is suitable for large diameters wires especially for high and low voltage power cables. Compared with cable tray, which is isolated, the cable ladder has good air circulation and heat dissipation. It is stabler and high load capacity than the wire mesh cable tray.
Materials of cable ladderCable ladder can be made of different materials. You should select the cable ladder material based on environmental and installation conditions. Here are various materials for choice. Refer to them and choose the best one.

Pre-galvanized carbon steel. It accord with AS1397 standard. This type of material suit the indoor applications.
Hot dipped galvanized. Accord with BS EN ISO 1461 standard. Widely used in the outdoors.
Stainless steel SS304/SS316. Most durable and solid material.
Powder coated carbon steel. Accord with JG/T 3045.
Aluminum. Conform to the AS/NZS 1866. Lightweight and durable.
Fiberglass reinforced plastic. Accord with AS 30135.
Electrolytic polishing for stainless steel. Conform to ISO 4995.

A stainless steel cable ladder on the gray background.

CL-01: Stainless steel cable ladder.

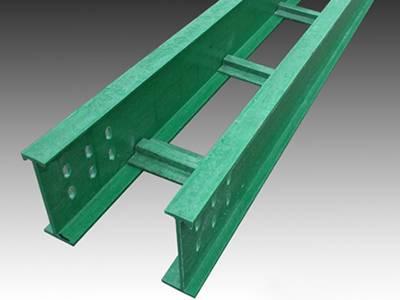

A FRP cable ladder on the gray background.

CL-02: FRP cable ladder.

Types of cable ladder
Cable ladder has various types, according to the different side walls and rungs. You can refer to the following types and choose the perfect one. If you need other types of cable ladder, just tell us, we will customize them according to your requirements.
CSO type. The side wall is C steel plate with the opening is outside. The rungs can be smooth or perforated.

CL-03: CSO type cable ladder.

Specifications of CSO type cable ladderItemRung spacing
(mm)Width
(mm)Height
(mm)Length
(mm)CLCSO-01CLCSO-02CLCSO-03CLCSO-04CLCSO-05CLCSO-06CLCSO-07CLCSO-08CLCSO-09CLCSO-10CLCSO-11CLCSO-12CLCSO-13CLCSO-14CLCSO-15CLCSO-16

300	150	65	3000/6000
300	150	93	3000/6000
300	150	130	3000/6000
300	150	150	3000/6000
300	300	65	3000/6000
300	300	93	3000/6000
300	300	130	3000/6000
300	300	150	3000/6000
300	450	65	3000/6000
300	450	93	3000/6000
300	450	130	3000/6000
300	450	150	3000/6000
300	600	65	3000/6000
300	600	93	3000/6000
300	600	130	3000/6000
300	600	150	3000/6000

CSI type. The side wall is C steel plate with the opening is inside. The side wall can be perforated or smooth as well as the rungs.

A sectional view and a lateral view picture of CSI type cable ladder.

CL-04: CSI type cable ladder.

Specifications of CSI type cable ladderItemRung spacing
(mm)Width
(mm)Height
(mm)Length
(mm)CLCSI-01CLCSI-02CLCSI-03CLCSI-04CLCSI-05CLCSI-06CLCSI-07CLCSI-08CLCSI-09CLCSI-10CLCSI-11CLCSI-12CLCSI-13CLCSI-14CLCSI-15CLCSI-16CLCSI-17CLCSI-18

300	150	50	3000/6000
300	150	100	3000/6000
300	150	150	3000/6000
300	200	50	3000/6000
300	200	100	3000/6000
300	200	150	3000/6000
300	300	50	3000/6000
300	300	100	3000/6000
300	300	150	3000/6000
300	400	50	3000/6000
300	400	100	3000/6000
300	400	150	3000/6000
300	450	50	3000/6000
300	450	100	3000/6000
300	450	150	3000/6000
300	600	50	3000/6000
300	600	100	3000/6000
300	600	150	3000/6000

I beam type. The side walls are I beams, which are perforated or not. The rungs can be perforated or smooth. This type of cable ladder is made of aluminum steel.

A sectional view and a lateral view picture of I beam cable ladder.

CL-05: I beam cable ladder.

Specifications of I beam type cable ladderItemRung spacing
(mm)Width
(mm)Height
(mm)Length
(mm)CLI-01CLI-02CLI-03CLI-04CLI-05CLI-06CLI-07CLI-08CLI-09CLI-10

300	150	100	3000/6000
300	150	150	3000/6000
300	200	100	3000/6000
300	200	150	3000/6000
300	300	100	3000/6000
300	300	150	3000/6000
300	450	100	3000/6000
300	450	150	3000/6000
300	600	100	3000/6000
300	600	150	3000/6000

Features of cable ladder

Simple structure.
Lightweight.
Low cost.
Good air circulation.
Easy installation.
Good heat dissipation.

Accessories of cable ladder
To suit more applications and make the wiring system smooth and fluent, you may need various accessories. We can not only supply different kinds of cable ladder, we can also supply all kinds of cable ladder accessories. The main accessories are as follows, know who they are and decide if you need them.
