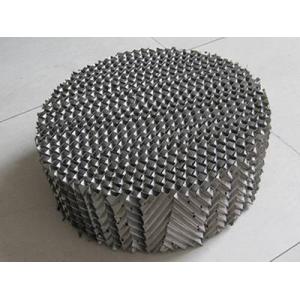

Metal Perforated Plate Corrugated Packing with Lon

Metal Perforated Plate Corrugated Packing for separation treatmentMetal perforated plate corrugated packing is a kind of structured packing which has advantages of large number of theoretical plates, high flux, low pressure drop and low load. It is made of arranged web pieces pressed into corrugation whose angles are 30 or 45 degrees and two adjacent pieces are of opposite directions.When filled into the packed tower, two trays of metal perforated plate corrugated packings are set in 90 degrees staggered arrangement.
Metal perforated plate corrugated packing is generally used in normal pressure distillation, vacuum distillation and absorption processes of matters which are thermal sensitive or hard to separate.

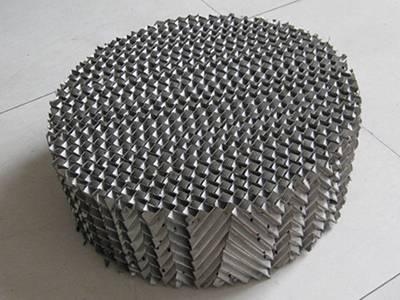

MPPCP-01: Metal perforated plate corrugated packing is a kind of structured packing for separation processing.

MPPCP-02: Metal perforated plate corrugated packing is often packed in carton or wooden boxes.

Specification - metal perforated plate corrugated packingModelTheoretical plate number (1/m)Specific surface area (m²/m³)Void volume (m³/m³)Pressure drop (Pa/m)Fluid load m³/(m²·h)Biggest F factor (Pa^0.5)MPPCPS-1MPPCPS-2MPPCPS-3MPPCPS-4MPPCPS-5MPPCPS-6MPPCPS-7MPPCPS-8MPPCPS-9MPPCPS-10

2 - 3	250	0.97	220	0.2 - 40	3
2.5 - 3.5	250	0.97	280	0.2 - 40	2.6
2.5 - 3.5	350	0.958	300	0.2 - 30	2.5
3 - 4	350	0.958	380	0.2 - 30	2.2
4 - 5	500	0.94	400	0.2 - 20	2.2
4.5 - 5.5	500	0.94	460	0.2 - 20	2
6 - 7	700	0.916	500	0.2 - 20	2
6.5 - 8	700	0.916	550	0.2 - 20	1.8
8 - 9	1000	0.88	700	0.2 - 10	1.4
9 - 10	1000	0.88	800	0.2 - 10	1.2
Wire diameter: greater than or equal to 0.125 mm. Mesh: greater than or equal to 60. Mass per unit area (of wire mesh): greater than or equal to 0.60 kg/m2.

Features

• A type of structured packing.
• Corrugated metal sheet with helical teeth.
• Must equipped with other tower internals, such as trays, distributors, demisters, etc.
• Maintain higher operating temperatures.
• High purifying efficiency & low pressure loss.
• High flux.
• Low liquid holdup.
• Long service life.

MPPCP-03: Metal perforated plate corrugated packing has high flux and a long service life.

MPPCP-04: Metal perforated plate corrugated packing is suitable for separation processing.

Application
Metal perforated plate corrugated packing is widely used in industry of fine chemicals, perfume and so forth. It is especially suitable for separation of isomers, distillation for the hard separation system, the thermosensitive system and high purity products.
Package

• Covered with wall flow loops.
• Packed in carton or wooden boxes.
