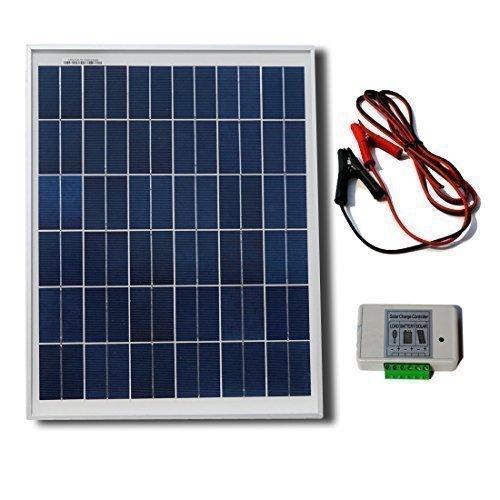

25W12V Solar module with Battery Clips&3A Charger
Price: USD30.15
Product Description
Here are sale the 25w home solar panel installer kit with high quality battery clips, the 25 watt solar panel is Made of the real Aluminium frame and Glass, not plastic. All of DC wiring from panel to battery clamps is 16 Gauge, is more than enough for 25 watts. If your full battery voltage reading at around 13.5 to 13.8, this mean: You're using around 50% to 80% of your solar putting out as the rest of your power stay into your main battery as of float charge, at the same time, your full 25 watts will turn down to around 8 watts, it also better for your battery too.This Chart will give you more vision, what it can do, safely.
The 25W solar panel system Kit includes:
Specification
Here are sale the 25w home solar panel installer kit with high quality battery clips, the 25 watt solar panel is Made of the real Aluminium frame and Glass, not plastic. All of DC wiring from panel to battery clamps is 16 Gauge, is more than enough for 25 watts. If your full battery voltage reading at around 13.5 to 13.8, this mean: You're using around 50% to 80% of your solar putting out as the rest of your power stay into your main battery as of float charge, at the same time, your full 25 watts will turn down to around 8 watts, it also better for your battery too.This Chart will give you more vision, what it can do, safely.
The 25W solar panel system Kit includes:
| 25W solar panel | 1pcs 25W poly solar panel |
| Solar charge controller | 1pcs 3A 12V/24V solar charge controller |
| Extension cable | 2m(6.6ft) extension cable with battery clips |
Specification
- 25W solar panel solar panel
Related power | 25W |
Maximum/Peak Voltage(Vmp) | 17.9V |
Open Circuit Voltage(Voc) | 22.41V |
Maximum/Peak Current(Imp) | 1.4A |
Short circuit current (Isc) | 1.54A |
Output Tolerance | ±3% |
Temperate coefficient of Isc | (010+/- 0.01) %/℃ |
Temperate coefficient of Voc | - (0.38 +/-0.01) %/℃ |
Temperate coefficient of power Voc | -0.47%/℃ |
Temperature range | -40℃to +80℃ |
Frame | Heavy duty aluminum |
Guarantee of power | 90% within 10 years 80% within 25 years |
Kind of glass and its thickness | Low Iron, high transparency tempered glass of 3.2mm |
SLA Battery Voltage | 12V |
Size: | 520*365*18mm(20.5''x14.4''x0.7'') |
- 3A solar charge controller
Nominal output (automatic identification ) | 12V | 24V |
Operating current | 3A | 3A |
Short-term load current(60s) | 6A | 6A |
Max solar panel | 40W | 80W |
Over discharge protection | 10.8V(±0.2V) | 21.6V |
Reset | 12V(±0.2V) | 24V (±0.2V) |
Over discharge protection | 14.4V (±0.2V) | 28.8V |
Float charge | 13.8V (±0.2V) | 27.6V(±0.2V) |
Temperature compensation/℃ | -27 | -27 |
PWM charging | Yes | Yes |
Self- consumption | 1.5mA | 3mA |
LED charging indicator | Yes | Yes |
Solar panel connection indicator | Yes | Yes |
Operating temperature | -20 to +60℃ | -20 to +60℃ |
Waterproof | IP65 | IP65 |
Size | 80*62*29mm(3.1''*2.4''*1.1'') | 80*62*29mm(3.1''*2.4''*1.1'') |
Net weight | 40g | 40g |
