25W 12V Solar Panel Kit with Solar Charger Control
Price: 48.45
25W 12V polycrystalline solar panel system photovoltaic solar panel for a small home lighting system, RV, cabin, telecom station, any 12V DC load package included.
The 25W solar panel system widely applied to DC LED lights, battery, camping, picnic and other uses. The solar panel is with good resistance to climate, preventing wind, hail. It can effectively resist corrosion of moisture and salt fog and can produce highly efficient power and energy.

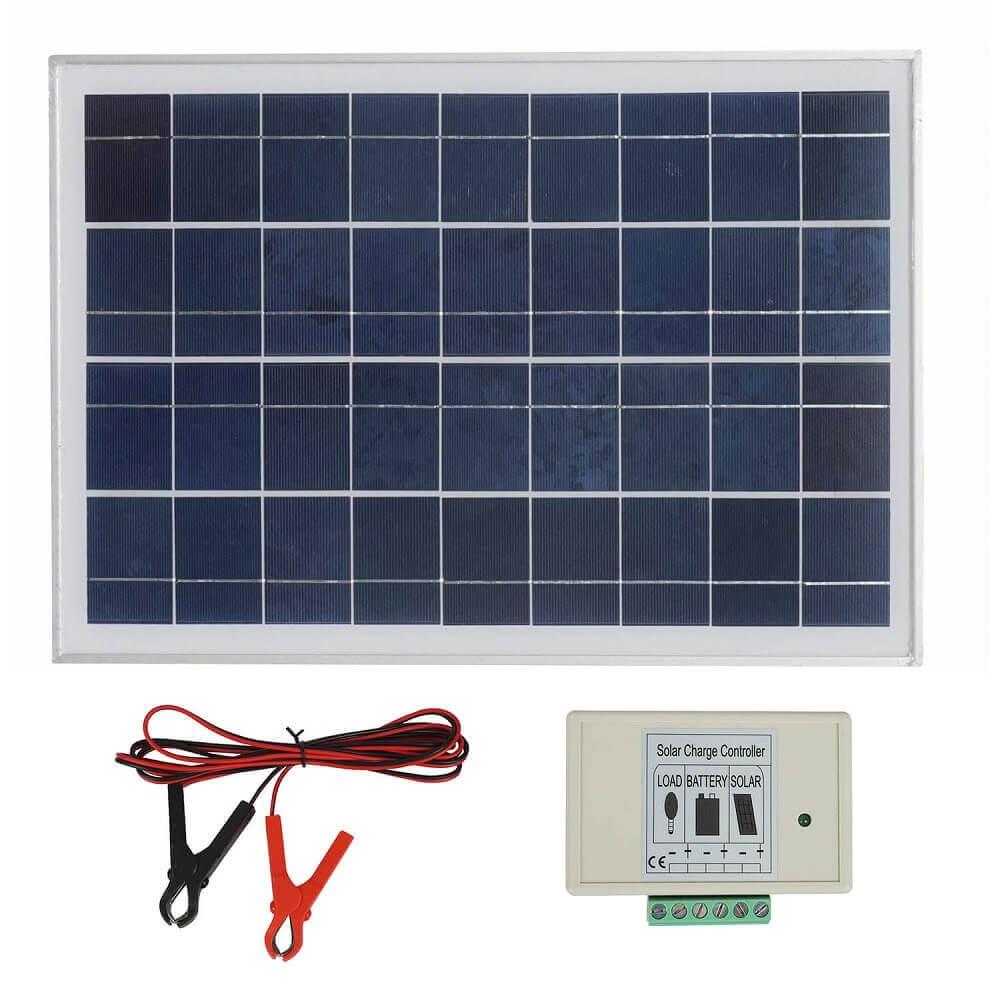

Package Included
1 pc 25w Polycrystalline Solar Panel with 1m Cable
1 pc 3A 12V/24V Solar Charge Controller
1 pair 2m Extension Cable with Battery Clips
25Watts Polycrystalline Solar Panel For Home Garden
Pre-installed 3A 12V/24V Solar Charge Controller
- Connection order: *First step: Connect the battery to the solar charge controller; *Second step: connect the solar panel to the controller; *The last step: connect the load to the controller. - Disconnect order: *First step: disconnect the load with solar charge controller; *Second step: disconnect the controller with a solar panel; *The last step: disconnect the battery with the solar charge controller. - Cleaning Note: *Use warm water and a soft sponge or cloth to clean your panel and keep the controller dry.
The 25W solar panel system widely applied to DC LED lights, battery, camping, picnic and other uses. The solar panel is with good resistance to climate, preventing wind, hail. It can effectively resist corrosion of moisture and salt fog and can produce highly efficient power and energy.
Package Included
1 pc 25w Polycrystalline Solar Panel with 1m Cable
1 pc 3A 12V/24V Solar Charge Controller
1 pair 2m Extension Cable with Battery Clips
25Watts Polycrystalline Solar Panel For Home Garden
- Can be applied to vary DC appliance, Ideal for everyday use.
- High-efficiency solar cells, small in size and easy to take.
- Water-proof solar panel with long-lasting aluminum frame provides over 20 years lifespan.
- 3A 12V/24V PWM charge controller, overcharge and over-discharge protection for the battery.
- Battery clips with 2m extension wire, easy and convenient for operation.
| Specification | |
| Rated power | 25W |
| Voc | 22.41V |
| Vop | 17.9V |
| Short circuit current (Isc) | 1.54A |
| Working current (Iop) | 1.4A |
| Output tolerance | ±3% |
| Temperate coefficient of Isc | (010+/- 0.01 )%/ ℃ |
| Temperate coefficient of Voc | - (0.38 +/-0.01 )%/ ℃ |
| Temperate coefficient of power Voc | -0.47%/℃ |
| Temperature range | -40℃ to +80℃ |
| Frame | Heavy duty aluminum |
| Kind of connection | waterproof junction box, can be customized |
| Guarantee of power | 90% within 10 years 80% within 25 years |
| Kind of glass and its thickness | Low Iron, high transparency tempered glass of 3.2mm |
| SLA Battery Voltage | 12V |
| Dimensions (L x W x H)mm | 520*365*18（20.47*14.37*0.71in） |
Pre-installed 3A 12V/24V Solar Charge Controller
| Specification | ||
| Technical Parameter | 12V | 24v |
| Max charge current | 3A | 3A |
| Max load current | 6A | 6A |
| Over-discharge protection | 10.8V(±0.2V) | 21.6V |
| Reset | 12V(±0.2V) | 24V (±0.2V) |
| Overcharger protection | 14.5V/29V | 14.5V/29V |
| Float Charge | 13.8V (±0.2V) | 27.6V(±0.2V) |
| Temperature compensation/℃ | -27 | -27 |
| Self-consumption | 1.5mA | 3mA |
| Waterproof | IP22 | IP22 |
| Operating temperature | -20 to +60℃ | -20 to +60℃ |
| LED charging indicator | Yes | Yes |
- Connection order: *First step: Connect the battery to the solar charge controller; *Second step: connect the solar panel to the controller; *The last step: connect the load to the controller. - Disconnect order: *First step: disconnect the load with solar charge controller; *Second step: disconnect the controller with a solar panel; *The last step: disconnect the battery with the solar charge controller. - Cleaning Note: *Use warm water and a soft sponge or cloth to clean your panel and keep the controller dry.
