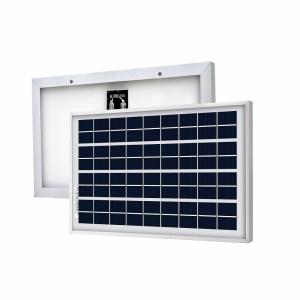

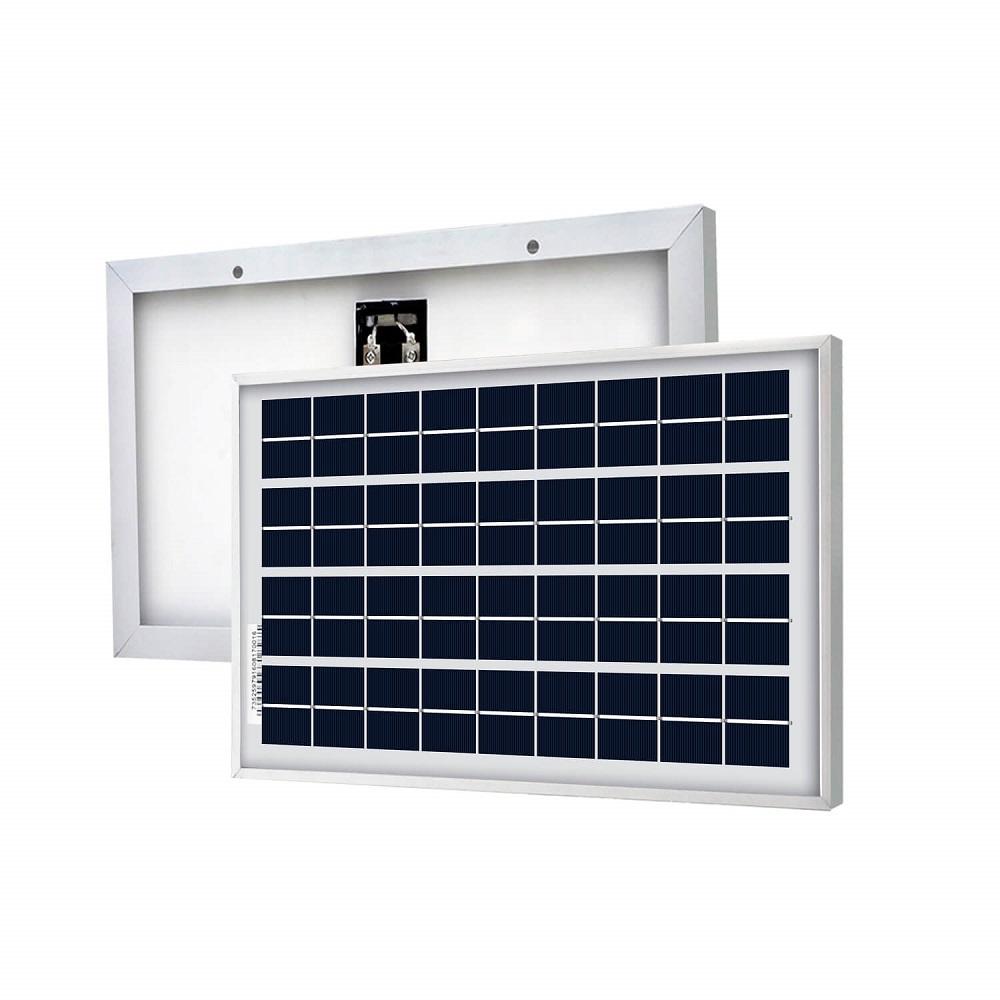

10 Watts Solar Panel for Home Garden Boat Charging
Price: 18.99
ECO-WORTHY 's solar panel composes of a multi-crystal solar cell with an efficiency of over 17%. All ECO-WORTHY rigid solar panels are constructed using a tempered glass front, EVA pottant, and a PVF backing to provide maximum protection from the most severe environmental conditions. The entire laminate is framed in a heavy-duty anodized aluminum frame to provide structural strength and ease of installation. This translates to both more wattage per square foot and lowers mounting structure cost.
Package Included:
1 pc 10W 12V Polycrystalline Solar Panel
Feature
Quality assurance testing:
1. Thermal cycling test2. Thermal shock test3. Thermal/Freezing and high humidity cycling test4. Electrical isolation test5. Hail impact test6. Mechanical, wind and twist loading test7. Salt mist test8. Light and water-exposure test9. Moist carbon dioxide/sulphur dioxide
Package Included:
1 pc 10W 12V Polycrystalline Solar Panel
Feature
- Widely used on small dry camp and off-grid lighting applications.
- Easy Installation with pre-drilled hole.
- Waterproof IP-65 Rated Junction Box: Advanced water and dustproof level (complete protection against environmental particles and low-pressure water jets).
- Resistance to Salt Corrosion and Humidity.
- Corrosion-resistant aluminum frame for extended outdoor use, allowing the panels to last for decades as well as withstand high winds (2400Pa) and snow loads (5400Pa), Lightweight anodized aluminum frame and reinforced Safety and anti-reflection coated glass 3.2mm thick (tempered + patterned).
- Warranty: 5-year material and workmanship warranty.
| Specification | |
| Rated power | 10 W |
| Voc | 20.6V |
| Vop | 17.3V |
| Short circuit current (Isc) | 0.69A |
| Working current (Iop) | 0.58A |
| Output tolerance | ±3% |
| Temperate coefficient of Isc | (010+/- 0.01 )%/ ℃ |
| Temperate coefficient of Voc | - (0.38 +/-0.01 )%/ ℃ |
| Temperate coefficient of power Voc | -0.47%/℃ |
| Temperature range | -40℃ to +80℃ |
| Frame | Heavy duty aluminum |
| Kind of connection | Waterproof junction box, can be customized |
| Guarantee of power | 90% within 10 years 80 within 25 years |
| Kind of glass and its thickness | Low Iron, high transparency tempered glass of 3.2mm |
| SLA Battery Voltage | 12V |
| Dimensions (L x W x H)mm | 337 ×204 x 18(13.3*8.06*0.72) |
| Weight | 0.85kgs (1.88lbs) |
Quality assurance testing:
1. Thermal cycling test2. Thermal shock test3. Thermal/Freezing and high humidity cycling test4. Electrical isolation test5. Hail impact test6. Mechanical, wind and twist loading test7. Salt mist test8. Light and water-exposure test9. Moist carbon dioxide/sulphur dioxide
