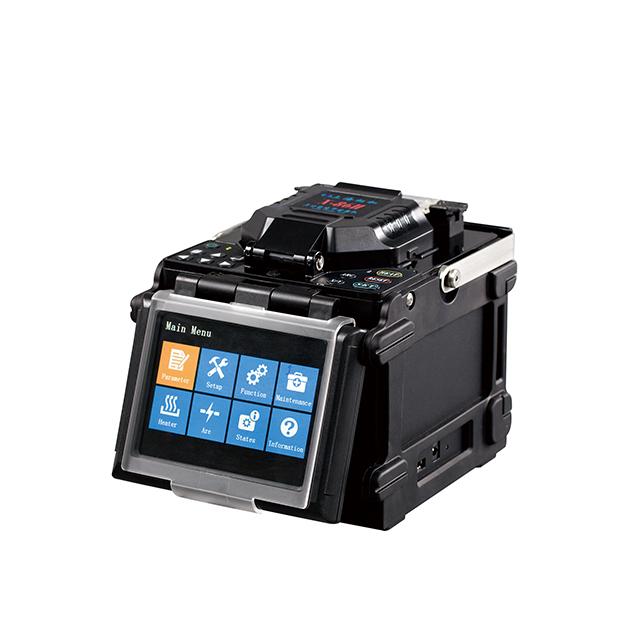

Outdoor Multi Function Fiber Fusion Splicer X86H
Price: negoiatable
X-86H Fiber fusion splicer is specially designed for outdoor projects, it has big battery capacity and robust rubber armor protection, which has long time and stable performance even in harsh environment.
Features
Specifications
Features
- PAS technology, core to core alignment
- Automatic ARC calibration, splciing and heating
- Rubber armor protection from shock,drop etc.
- Big capacity Li-battery, more than 300 cycles splicing and heating
Specifications
| Applicable fiber | SM(ITU-T G.652),MM(ITU-T G.651),DS(ITU-T G.653),NZDS(ITU-T G.655) |
| Diameter of cladding | 80 -150μm |
| Diameter of coating | 160-900μm |
| Typical splice loss | SM: 0.02dB, MM: 0.01dB, DS: 0.04dB, NZDS: 0.04dB |
| Return loss | ＞ 60dB |
| Fibe cleaved length | 10-16mm ( coating diameter ＜ 250um), 16mm (coating diameter:250-1000um) |
| Splicing program | 40 groups |
| Operate mode | Automatic/Manual |
| Auto-heating | Available |
| Typical splicing time | 8 seconds |
| Typical heating time | 26 seconds |
| Fiber magnification | 300X (X or Y view), 150X (X and Y view) |
| Display screen | 5.7 inch color LCD monitor |
| Records storage | 4000 results |
| Loss evaluation | Available |
| Tension test | 1.8-2.2N |
| Interface | GUI menu interface, easy for operation |
| Battery | 8800mAh Li-battery, typical 300 cycles splicing and heating, support separating charging |
| Power supply | Adapter, input: AC 100-240V(50/50HZ), output: 11-13.5V |
| Electrodes life | More than 4000 ARC discharges, can be replaced conveniently |
| Ternimal | USB2.0 port, for software upgrading and records exporting |
| Operating conditions | Altituede: 0-5000m, Humidity: 0-95%, Temperature: -10℃~+50℃, Wind speed: Max 15m/s |
| Dimension | 160mm(L) * 150mm(W) * 145mm(H) |
| Weight | 2.75kg (including battery) |
