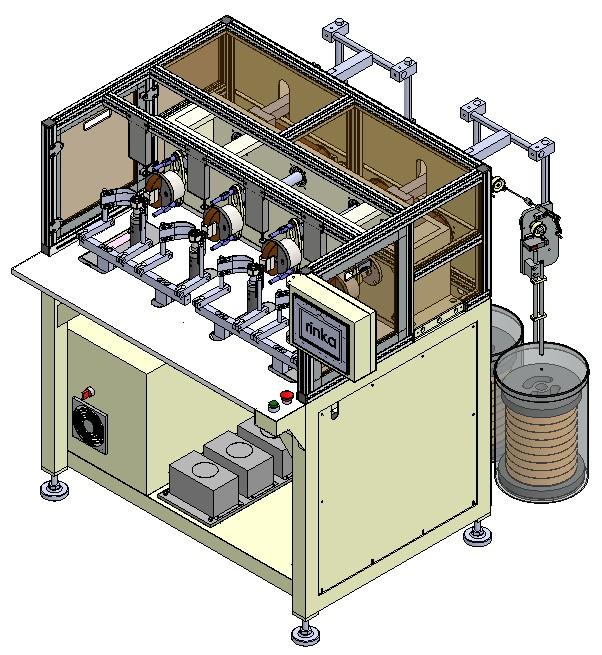

TOW-2241 WINDING MACHINE
Price:
TOW-2241S:
Application:
Stator I.D. 30~50 mm
Stack height 15~45 mm
Number of slots 4~18 poles
Winding speed Max.3000 RPM (Min.)
Specifications
Driving method Servo motor
Motor 1.5KW
Dimension 1000(L)×1266(W)×1215(H) mm
Function & Features
1. Function: The machine with flying fork winding is suitable for small type stator. It has four spindle on one machine and operate at one time.
2. Features：
a. Easy adjustment while changing stack height of stator
b. Easy to setting program while changing number of pole of stator
c. 99 sets program memory system
Application:
Stator I.D. 30~50 mm
Stack height 15~45 mm
Number of slots 4~18 poles
Winding speed Max.3000 RPM (Min.)
Specifications
Driving method Servo motor
Motor 1.5KW
Dimension 1000(L)×1266(W)×1215(H) mm
Function & Features
1. Function: The machine with flying fork winding is suitable for small type stator. It has four spindle on one machine and operate at one time.
2. Features：
a. Easy adjustment while changing stack height of stator
b. Easy to setting program while changing number of pole of stator
c. 99 sets program memory system
