6×19 IWRC Galvanized Wire Rope

Price: 1.2

The 6×19 galvanized wire rope provides an excellent balance between good fatigue and wear resistance. Widely using in lifting and rigging, securement, and general purpose.
DiameterRope CoreStandardTreatment

10mm – 120mm

Independent Wire Rope Center (IWRC)

GB/T20118, EN, GOST, API.

Galv. / Bright, Oiled

Description Of 6×19 IWRC Wire Rope

The 6×19 class 6×19 IWRC galvanized wire rope consists of 6 strands. And each strand making of 19 individual wires. Providing a balance between flexibility and strength. Besides, this wire rope construction provides particularly popular for applications where the additional resistance to wear and abrasion.

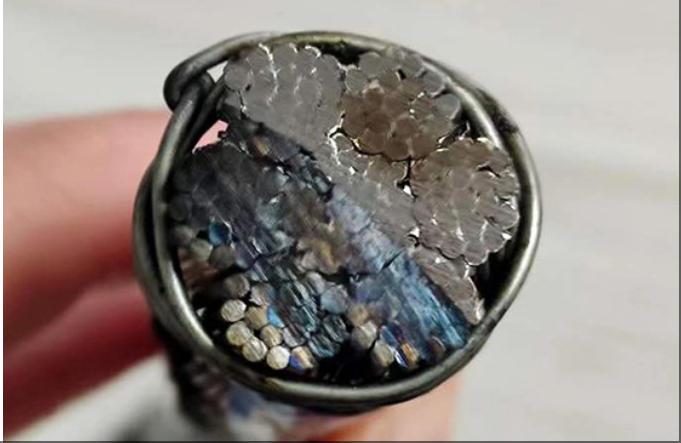

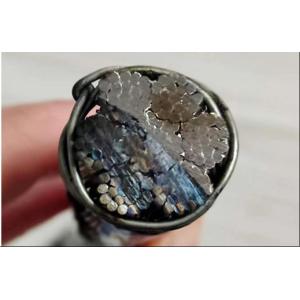

6×19 IWRC galvanized wire rope construction, round strand steel wire ropes

IWRC Center Core: Independent Wire Rope Core. Increase resistance to abrasion, heat. Also, provides higher strength performance, better resistance to crushing. And improved stability under load.
Galvanized: Hot- Dip Galvanized. This steel cable undergoes a hot dip galvanized treatment. As well as, superior corrosion resistant zinc coating, which is more stronger.
galv wire rope factory, galvanized steel wire rope manufacturer,galvanized steel

galv wire rope factory, galvanized steel wire rope manufacturer,galvanized steel

Wide Uses: Widely using in various industries, for example, construction, marine. As well as lifting applications, where durability, strength, and resistance to environmental factors are crucial.

6×19 IWRC Wire

Rope Specification

Rope Diameter (mm)	Rope Reference Weight (kg/100m)	Rope Grade
1570	1670	1770	1870	1960
Steel Wire Rope Minimum Breaking Force (kN)
FC	SC	FC	SC	FC	SC	FC	SC	FC	SC	FC	SC
9	28.4	32.4	39	42.2	41.5	44.9	44.0	47.6	46.5	50.3	48.7	52.7
10	35.1	40.0	48.2	52.1	51.3	55.4	54.3	58.8	57.4	62.1	60.2	65.1
11	42.5	48.4	58.3	63.1	62.0	67.1	65.8	71.1	69.5	75.1	72.8	78.7
12	50.5	57.6	69.4	75.1	73.8	79.8	78.2	84.6	82.7	89.4	86.6	93.7
13	59.3	67.6	81.5	88.1	86.6	93.7	91.8	99.3	97.0	105	102	110
14	68.8	78.4	94.5	102	100	109	107	115	113	122	118	128
16	89.9	102	123	133	131	142	139	150	147	159	154	167
18	114	130	156	169	166	180	176	190	186	201	195	211
20	140	160	193	208	205	222	217	235	230	248	241	260
22	170	194	233	252	248	268	263	284	278	300	291	315
24	202	230	278	300	295	319	313	338	331	358	347	375
26	237	270	326	352	347	375	367	397	388	420	407	440
28	275	314	378	409	402	435	426	461	450	487	472	510
30	316	360	434	469	461	499	489	529	517	559	542	586
32	359	410	494	534	525	568	556	602	588	636	616	666
34	406	462	557	603	593	641	628	679	664	718	696	752
36	455	518	625	676	664	719	704	762	744	805	780	843

Galv. Steel Wire Rope Factory Manufacturing

Manufacturing: We are a dedicated wire rope supplier with our own factory and warehouse. In order to ensuring full control over the production process.
Advanced Production Technology: Our factory is equipped with state-of-the-art production machines. Besides, our annual output reach to 100000 tons.
镀锌钢丝绳厂，钢丝绳制造商供应，圆股钢丝绳

Quality Assurance: We have an independent testing facility where rigorous testing is conducted. Both from raw material inspection and to the finished wire ropes undergo strict testings to guarantee they meet high strength as well as quality standards.
Factory Direct Supply: By supplying directly from our factory, we also offer competitive prices without intermediaries.
Fast Delivery: Our efficient production process and large-scale operations also allow us to ensure fast and reliable delivery to meet customer demands.
