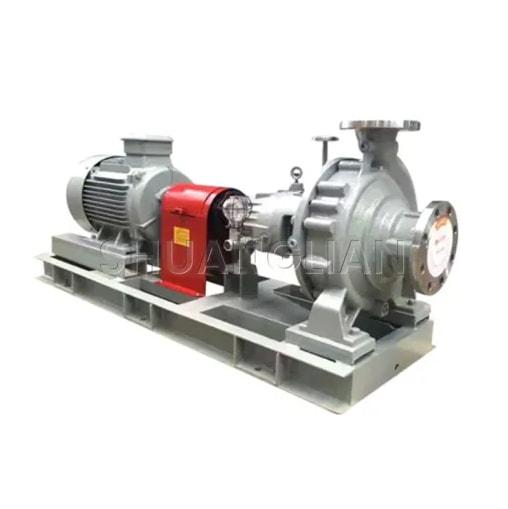

CZ series standard chemical pump
Price:
ric acid, and phosphoric acid at various temperatures and concentrations; Alkaline solutions such as sodium hydroxide and sodium carbonate at various temperatures and concentrations; Various salt solutions; Various liquid petrochemical products, organic compounds, and other corrosive liquids.
Flow rate (Q): up to 2000m3/h
Head (H): Up to 160m
Working pressure (P): 2.5MPa
Working temperature (t): -80 ℃ -+300 ℃
This series of pumps can transport media containing solid particles and easy to crystallize, with temperature resistance, corrosion resistance, and no blockage. The material can be selected according to specific working conditions.
Applicable working conditions:
CZ type chemical pump is suitable for industries such as chlor alkali and soda ash; Medicine, fertilizers, pesticides; Petrochemical, chemical fiber, and paper industries; Dye industry; Engineering and water treatment systems.
CZ type chemical pump structural form
Horizontal rear door structure, pump head and motor connected by coupling, installed on the bottom plate, impeller is rear open, with three bearings, shaft seal adopts external mechanical seal, equipped with cooling device, and the oil level of the bearing body is observed with an oil mirror; Compact and reasonable structure.
The pump is cast with support feet on the pump body, which can withstand loads from the pipeline and directly transmit them to the foundation. This way, the pump rotor will not bend due to the load borne by the pump, ensuring good service life of the bearing and mechanical seal. When repairing, it is not necessary to open the pipeline connected to the pump body. As long as the bolts between the bracket and the pump body are opened, the impeller and mechanical seal can be repaired separately, which is simple and convenient.
Rotation direction of the pump: Rotate clockwise when looking towards the pump from the motor end.
If you want to learn more, please visit our website.
Flow rate (Q): up to 2000m3/h
Head (H): Up to 160m
Working pressure (P): 2.5MPa
Working temperature (t): -80 ℃ -+300 ℃
This series of pumps can transport media containing solid particles and easy to crystallize, with temperature resistance, corrosion resistance, and no blockage. The material can be selected according to specific working conditions.
Applicable working conditions:
CZ type chemical pump is suitable for industries such as chlor alkali and soda ash; Medicine, fertilizers, pesticides; Petrochemical, chemical fiber, and paper industries; Dye industry; Engineering and water treatment systems.
CZ type chemical pump structural form
Horizontal rear door structure, pump head and motor connected by coupling, installed on the bottom plate, impeller is rear open, with three bearings, shaft seal adopts external mechanical seal, equipped with cooling device, and the oil level of the bearing body is observed with an oil mirror; Compact and reasonable structure.
The pump is cast with support feet on the pump body, which can withstand loads from the pipeline and directly transmit them to the foundation. This way, the pump rotor will not bend due to the load borne by the pump, ensuring good service life of the bearing and mechanical seal. When repairing, it is not necessary to open the pipeline connected to the pump body. As long as the bolts between the bracket and the pump body are opened, the impeller and mechanical seal can be repaired separately, which is simple and convenient.
Rotation direction of the pump: Rotate clockwise when looking towards the pump from the motor end.
If you want to learn more, please visit our website.
