Pin Type Circuit Breaker Lockout Safety Mini Miniature Circu
Price:

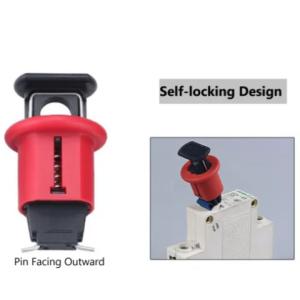

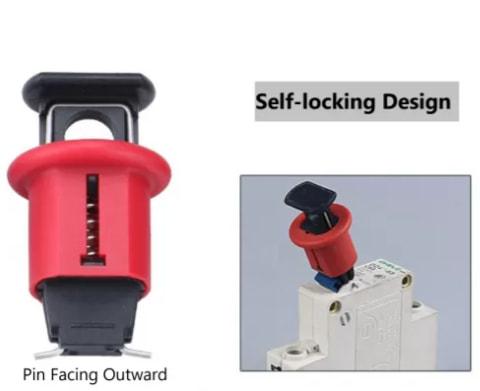

Pin Type Circuit Breaker Lockout Safety Mini Miniature Circuit Breaker
Code: DZS01
Self-locking Design,Pin facing outward.
Push-button mechanism for simple pin prong extension.
Suitable for both single and multi-pole breakers with a tie-bar.
Attach padlock for lockout.
Extremely simple to use: Simply switch off the MCB, push the button on the device to extend the pin prongs, and attach to the MCB before releasing the button and attaching a padlock to fully secure the lockout.
No tools required for installation; the device engages wire pins into the small holes located on either side and secures the MCB, preventing it from being energized until the lockout is removed.
Lockout device can be used on single and multi-pole breakers that are operated with a tie-bar.
Product Information
Miniature Circuit Breaker Lockout POS
a) Made of engineering plastic strengthened nylon PA.
b) Applied for most existing types of European and Asian circuit breakers.
c) Suggested to be equipped together with a padlock for added safety.
d) Easily installed, no tools needed.
e) Can take padlocks with a shackle diameter up to 9/32″ (7.5mm).
f) Available for single and multi-pole breakers.
Different Types of Circuit Breaker Locks
1. Miniature Circuit Breaker Locks
1.Made of engineering plastic reinforced nylon PA.
2.A safe and effective way to lock miniature circuit breakers, common to European and Asian equipment.
3.The installation of miniature circuit breaker locks does not require any tools! Just one button can easily complete the installation.
4.The pull rod type lock uses a thumb wheel to complete the installation quickly.
5.Single-pole and multi-pole circuit breaker locks are available.
6.It is recommended to use with professional safety padlocks, and padlocks with a lock beam diameter of up to 7mm can be used.
2. Small and Medium Circuit Breaker Lock
Made of strong and durable reinforced nylon.
Lock hole diameter 7.6mm.
Suitable for small and medium circuit breakers.
Code: DZS01
Self-locking Design,Pin facing outward.
Push-button mechanism for simple pin prong extension.
Suitable for both single and multi-pole breakers with a tie-bar.
Attach padlock for lockout.
Extremely simple to use: Simply switch off the MCB, push the button on the device to extend the pin prongs, and attach to the MCB before releasing the button and attaching a padlock to fully secure the lockout.
No tools required for installation; the device engages wire pins into the small holes located on either side and secures the MCB, preventing it from being energized until the lockout is removed.
Lockout device can be used on single and multi-pole breakers that are operated with a tie-bar.
Product Information
Miniature Circuit Breaker Lockout POS
a) Made of engineering plastic strengthened nylon PA.
b) Applied for most existing types of European and Asian circuit breakers.
c) Suggested to be equipped together with a padlock for added safety.
d) Easily installed, no tools needed.
e) Can take padlocks with a shackle diameter up to 9/32″ (7.5mm).
f) Available for single and multi-pole breakers.
Different Types of Circuit Breaker Locks
1. Miniature Circuit Breaker Locks
1.Made of engineering plastic reinforced nylon PA.
2.A safe and effective way to lock miniature circuit breakers, common to European and Asian equipment.
3.The installation of miniature circuit breaker locks does not require any tools! Just one button can easily complete the installation.
4.The pull rod type lock uses a thumb wheel to complete the installation quickly.
5.Single-pole and multi-pole circuit breaker locks are available.
6.It is recommended to use with professional safety padlocks, and padlocks with a lock beam diameter of up to 7mm can be used.
Product | Model Description |
DZS01 | Miniature circuit breaker lock (pins facing outward) hole spacing ≤12mm |
DZS02 | Miniature circuit breaker lock (pins facing inward) hole spacing ≤12mm |
DZS03 | Suitable for multi-pole circuit breaker lock |
DZS04 | Miniature circuit breaker lock (pins facing outward, widened) hole spacing ≤20mm |
2. Small and Medium Circuit Breaker Lock
Made of strong and durable reinforced nylon.
Lock hole diameter 7.6mm.
Suitable for small and medium circuit breakers.
Product | Model Description |
DKS10 | Upper side width: 14.1mm, lower side width: 15.2mm |
