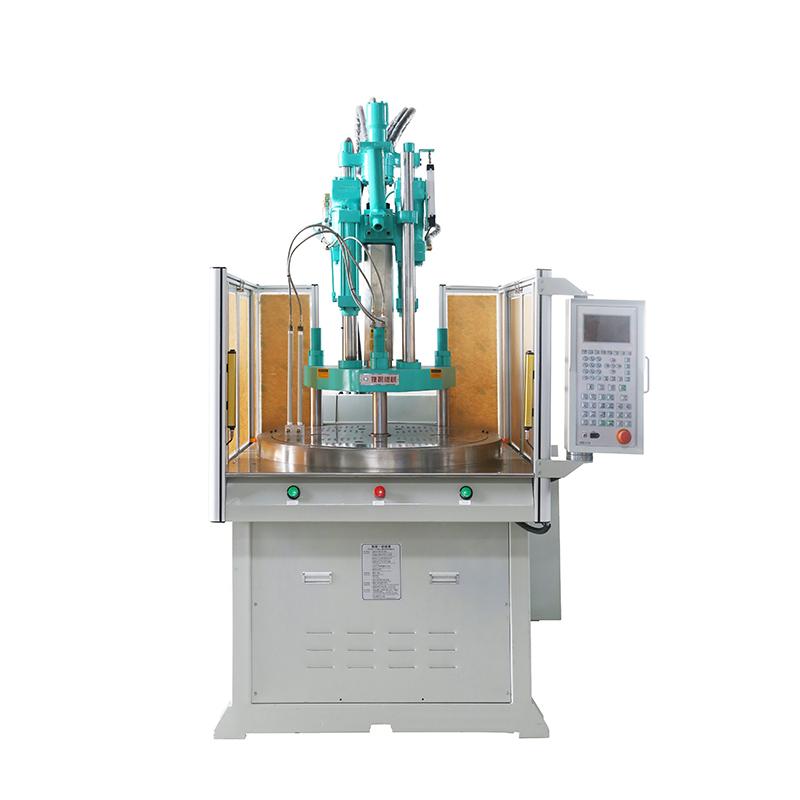

JY-850R2 Rotary Table Plastic Injection Machine
Price:
The Rotary Table Plastic Injection Machine is revolutionizing modern plastic manufacturing. Designed for precision and speed, it boosts production efficiency while ensuring high-quality output. Manufacturers increasingly rely on this advanced machinery to meet growing industry demands.
Product Features
1. English LCD can store 60 mold data points.
2. Double, three-position turntable, smooth rotation, to adapt to a variety of multi-mode insert processing, can greatly improve efficiency and save manpower.
3. Safe, product withdrawal embedding work not forming station, while the same job is performed in the external position, and the machine can be equipped with automatic devices.
4. The proportion of dual (pressure, flow) control, the machine runs with low noise, high speed, and low-pressure protection.
Product specifications (JY-850R2)
Advantages
1. Affordable price
2. Factory direct sales, supporting customization.
3. The core accessories are sourced from top Japanese or Taiwanese brands to ensure efficient, stable, and long-lasting performance of the machine.
4. Intelligent CNC computer system: It can monitor the production situation in real-time, adjust molds conveniently and simply, and can also store 999 sets of mold data.
5. The direct pressure hydraulic cylinder locking system provides more precise and efficient mold locking. Infrared safety grating and dual button start design provide dual protection for the personal safety of operators.
6. High precision tubing group can be customized according to customer requirements for more precise technology.
7. Three operating modes: manual, semi-automatic, fully automatic, can be combined with automated production, freeing up productivity.
By choosing Jieyang Machinery, you gain a reliable partner with extensive experience in vertical injection moulding. Whether you need custom solutions, high-precision production, or fast delivery, we provide the expertise and technology to help your business succeed.
Product Features
1. English LCD can store 60 mold data points.
2. Double, three-position turntable, smooth rotation, to adapt to a variety of multi-mode insert processing, can greatly improve efficiency and save manpower.
3. Safe, product withdrawal embedding work not forming station, while the same job is performed in the external position, and the machine can be equipped with automatic devices.
4. The proportion of dual (pressure, flow) control, the machine runs with low noise, high speed, and low-pressure protection.
Product specifications (JY-850R2)
Model | Unit | JY-850R2 | ||
Screw Diameter | mm | 3 | 40 | 45 |
Theoretical Injection Volume | cm3 | 162.7 | 201 | 254.3 |
Injection Weight(PS) | g(oz) | 153.8(5.4) | 190(6.7) | 240(8.47) |
Max. Injection Pressure | Mpa(kgf/cm2) | 180.5(1841) | 146(1492) | 115.5(1178) |
Injection Rate | cm3/s | 108.9 | 134.4 | 170 |
Injection Speed | mm/s | 107 | ||
Injection Stroke | mm | 160 | ||
Screw Speed Rotation | r.p.m | 0-200 | ||
Number of Temperature Control | 3+1 | |||
Nozzle out from Platens | mm | ≥45 | ||
Clamping Force | KN(tf) | 833(85) | ||
Clamping stroke | mm | 250 | ||
Min.Mold Thickness | mm | 230/330 | ||
Max.Opening | mm | 480/580 |
Advantages
1. Affordable price
2. Factory direct sales, supporting customization.
3. The core accessories are sourced from top Japanese or Taiwanese brands to ensure efficient, stable, and long-lasting performance of the machine.
4. Intelligent CNC computer system: It can monitor the production situation in real-time, adjust molds conveniently and simply, and can also store 999 sets of mold data.
5. The direct pressure hydraulic cylinder locking system provides more precise and efficient mold locking. Infrared safety grating and dual button start design provide dual protection for the personal safety of operators.
6. High precision tubing group can be customized according to customer requirements for more precise technology.
7. Three operating modes: manual, semi-automatic, fully automatic, can be combined with automated production, freeing up productivity.
By choosing Jieyang Machinery, you gain a reliable partner with extensive experience in vertical injection moulding. Whether you need custom solutions, high-precision production, or fast delivery, we provide the expertise and technology to help your business succeed.
