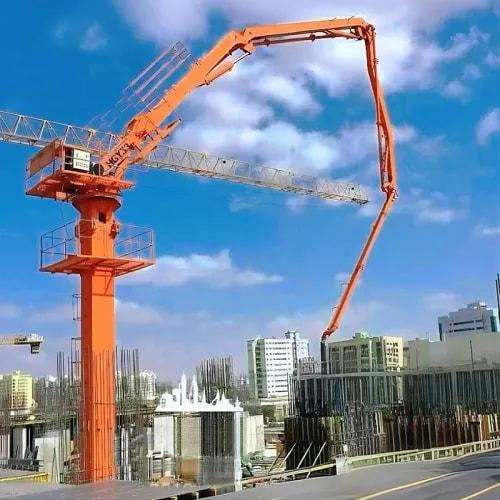

Floor-Fixed Self-Climbing Placing Boom

Price:

Max. horizontal reach 17 / 21 / 24 / 28 / 32 / 33 m

This concrete placing boom represents an advanced construction solution ideally suited for various concrete structures including high-rise buildings, bridges, foundations, and other architectural works. Its integrated self-climbing system significantly enhances operational efficiency in vertical construction projects while ensuring superior concrete placement quality and substantial reduction in labor requirements.

Our Self-Climbing Concrete Placing Boom is an advanced, hydraulic-driven auxiliary equipment designed to significantly enhance concrete placement efficiency in high-rise and large-scale construction projects. Engineered for seamless integration with stationary concrete pumps and truck-mounted pumps, this equipment is ideal for expanding the pouring range across multiple floors during building construction.

With models ranging from 17m to 33m placing radius, our self-climbing concrete placing boom offers flexible configurations to meet diverse project requirements. Whether installed in elevator shafts or directly on building floors, the boom utilizes a hydraulic self-climbing system to ascend alongside rising floor levels—eliminating the need for manual disassembly or crane repositioning.

Structural Composition:

The system comprises:
◈Primary tower structure
◈Automated climbing mechanism
◈360° slewing drive unit
◈Dual-level support base (upper/lower pedestals)
◈Multi-articulated boom assembly
◈Hydraulic power pack
◈Intelligent control system

Boom System Specifications:

The tri-sectional boom assembly features robust box-type structural members hydraulically actuated for precision folding/unfolding operations. Through coordinated articulation and rotational movement (210° typical working range), the system achieves comprehensive coverage of all construction zones within its operational radius.

Vertical Climbing Capability:

Utilizing its hydraulic climbing mechanism, the equipment ascends through pre-engineered floor penetrations in synchronization with building progression. Maximum placement elevation is determined by the coupled concrete pump's pressure capacity.

Safety-Enhanced Hydraulic System:

✮Pressure relief valves: Protect against system overloads
✮Double-lock hydraulic cylinders: Ensure position retention safety
✮Rotary motion limiter: Prevents uncontrolled boom oscillation
✮Fail-safe braking system: Complies with industrial safety standards

Operational Advantages:

1.Enhanced placement accuracy through computer-assisted positioning
2.Cycle time reduction through automated climbing functionality
3.Reduced manual intervention in vertical transportation
4.Optimized concrete consolidation with controlled placement rates
5.Adaptive configuration for complex architectural geometries

Main Technical Specification

Model	HGY17	HGY21	HGY24	HGY28	HGY32	HGY33
1	Horizontal(m)	17	21	24	28	32	33
2	Length of booms (m)	1st section	6.67	7.96	9.03	10.23	14.23	8.86
2nd section	5.73	6.95	7.95	9.31	9.31	8.02
3rd section	4.6	6.1	7.03	8.47	8.47	8.01
4th section	–	7.85
3	Articulation of booms (°)	1st section	0~90	0~92
2nd section	0~180	0~177
3rd section	0~180	0~180
4th section	–	0~181
4	Rotation angle (°)	360
5	Stationary height (m)	22
6	Tower structure (mm)	750×750
7	Delivery pipe dimension (mm)	Ф125
8	Length of hose (mm)	3000	3000	3000
9	Mode of operation	Radio Remote/Cable/Panle control
10	Output (kw)	5.5	11	15
11	Hydraulic pressure (Mpa)	20	22	20	23	28
12	Power	380V/50Hz
