Elevator-Fixed Placing Boom
Price:
Elevator-Fixed Placing Boom

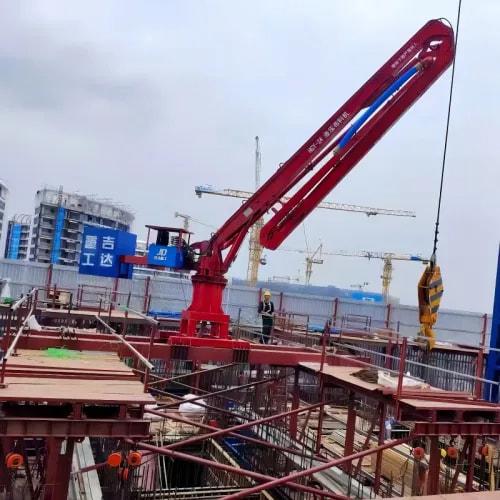

The elevator-fixed placing boom is a hydraulic-driven, self-climbing concrete placement system designed for high-rise construction. Engineered to integrate seamlessly with elevator shafts, this equipment automatically ascends floor-by-floor alongside the building's progression, eliminating the need for external cranes or manual repositioning.The elevator-fixed placing boom is a special type of placing boom designed specifically for high-rise buildings.
Max. horizontal reach 21 / 24 / 28 / 32 / 33 m
An elevator-fixed placing boom is a specialized construction equipment system designed for high-rise concrete placement, typically integrated into the building's elevator shaft or core.
Key Features & Functionality:
1. Structural Integration:
The boom is anchored to the building’s elevator core or shaft, leveraging its stability and central location. This allows the boom to ascend as the building grows, using the core as a support structure.
2.Vertical Mobility:
Operates similarly to an elevator, with a mast or track system that enables vertical movement. Sections can be added incrementally to match the building’s height, ensuring continuous reach to upper floors.
3.Concrete Placement:
Attached to a concrete pumping system, the boom distributes concrete precisely to required locations. It often includes a remote-controlled articulating arm for maneuverability around obstacles.
4.Efficiency in High-Rise Construction:
Eliminates the need for repetitive repositioning of truck-mounted pumps, which have limited reach. Ideal for skyscrapers where traditional equipment cannot access upper floors.
Advantages of Elevator-Fixed Placing Boom
Height Capability: Can extend to extreme heights (100+ meters) as the building rises.
Precision: Stable mounting reduces vibration, improving placement accuracy.
Time/Cost Savings: Reduces reliance on crane-dependent methods and minimizes downtime.
Space Efficiency: Uses the elevator shaft, avoiding ground-level space occupation.
Typical Use Cases:
Core Walls & Slabs: Pouring concrete for elevator shafts, shear walls, and floor slabs.
Climbing Formwork Systems: Synchronizes with formwork advancement during vertical construction.
Safety & Design:
Redundant Anchoring: Secured to the core with multiple fail-safes.
Modular Design: Boom sections are pre-fabricated for easy assembly and disassembly.
Comparison to Alternatives:
Truck-Mounted Booms: Limited to ~60 meters; unsuitable for super-tall structures.
Tower Cranes + Buckets: Slower and less precise.
Static Line Pumps: Require manual pipe reconfiguration; less flexible.
In summary, an elevator-fixed placing boom is a critical innovation for modern high-rise construction, offering unmatched efficiency, reach, and precision by integrating directly into the building’s structural core.
Technical Data
If you are looking for more details, kindly visit our website.
The elevator-fixed placing boom is a hydraulic-driven, self-climbing concrete placement system designed for high-rise construction. Engineered to integrate seamlessly with elevator shafts, this equipment automatically ascends floor-by-floor alongside the building's progression, eliminating the need for external cranes or manual repositioning.The elevator-fixed placing boom is a special type of placing boom designed specifically for high-rise buildings.
Max. horizontal reach 21 / 24 / 28 / 32 / 33 m
An elevator-fixed placing boom is a specialized construction equipment system designed for high-rise concrete placement, typically integrated into the building's elevator shaft or core.
Key Features & Functionality:
1. Structural Integration:
The boom is anchored to the building’s elevator core or shaft, leveraging its stability and central location. This allows the boom to ascend as the building grows, using the core as a support structure.
2.Vertical Mobility:
Operates similarly to an elevator, with a mast or track system that enables vertical movement. Sections can be added incrementally to match the building’s height, ensuring continuous reach to upper floors.
3.Concrete Placement:
Attached to a concrete pumping system, the boom distributes concrete precisely to required locations. It often includes a remote-controlled articulating arm for maneuverability around obstacles.
4.Efficiency in High-Rise Construction:
Eliminates the need for repetitive repositioning of truck-mounted pumps, which have limited reach. Ideal for skyscrapers where traditional equipment cannot access upper floors.
Advantages of Elevator-Fixed Placing Boom
Height Capability: Can extend to extreme heights (100+ meters) as the building rises.
Precision: Stable mounting reduces vibration, improving placement accuracy.
Time/Cost Savings: Reduces reliance on crane-dependent methods and minimizes downtime.
Space Efficiency: Uses the elevator shaft, avoiding ground-level space occupation.
Typical Use Cases:
Core Walls & Slabs: Pouring concrete for elevator shafts, shear walls, and floor slabs.
Climbing Formwork Systems: Synchronizes with formwork advancement during vertical construction.
Safety & Design:
Redundant Anchoring: Secured to the core with multiple fail-safes.
Modular Design: Boom sections are pre-fabricated for easy assembly and disassembly.
Comparison to Alternatives:
Truck-Mounted Booms: Limited to ~60 meters; unsuitable for super-tall structures.
Tower Cranes + Buckets: Slower and less precise.
Static Line Pumps: Require manual pipe reconfiguration; less flexible.
In summary, an elevator-fixed placing boom is a critical innovation for modern high-rise construction, offering unmatched efficiency, reach, and precision by integrating directly into the building’s structural core.
Technical Data
Model | HGY17 | HGY21 | HGY24 | HGY28 | HGY32 | HGY33 | ||
1 | Horizontal(m) | 17 | 21 | 24 | 28 | 32 | 33 | |
2 | Length of booms (m) | 1st section | 6.67 | 7.96 | 9.03 | 10.23 | 14.23 | 8.86 |
2nd section | 5.73 | 6.95 | 7.95 | 9.31 | 9.31 | 8.02 | ||
3rd section | 4.6 | 6.1 | 7.03 | 8.47 | 8.47 | 8.01 | ||
4th section | – | 7.85 | ||||||
3 | Articulation of booms (°) | 1st section | 0~90 | 0~92 | ||||
2nd section | 0~180 | 0~177 | ||||||
3rd section | 0~180 | 0~180 | ||||||
4th section | – | 0~181 | ||||||
4 | Rotation angle (°) | 360 | ||||||
5 | Stationary height (m) | 22 | ||||||
6 | Tower structure (mm) | 750×750 | ||||||
7 | Delivery pipe dimension (mm) | Ф125 | ||||||
8 | Length of hose (mm) | 3000 | 3000 | 3000 | ||||
9 | Mode of operation | Radio Remote/Cable/Panle control | ||||||
10 | Output (kw) | 5.5 | 11 | 15 | ||||
11 | Hydraulic pressure (Mpa) | 20 | 22 | 20 | 23 | 28 | ||
12 | Power | 380V/50Hz |
