Form-Frame Placing Boom
Price:
Form-Frame Placing Boom
What is a Form-Frame Placing Boom?

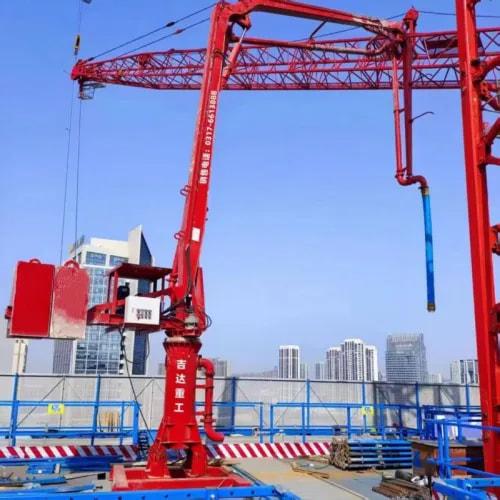

A Form-Frame Placing Boom is a hydraulic, self-climbing concrete placing system that is mounted in a fixed location and is used primarily in high-rise construction. As the building progresses, the Form-Frame Placing Boom ascends alongside the structure, allowing concrete to be poured directly into formwork, shear walls, and slabs with pinpoint accuracy.
This type of Placing Boom is designed to extend horizontally and vertically, providing coverage over large areas. It integrates seamlessly with climbing formwork systems, making it an ideal solution for skyscrapers and other tall buildings where traditional concrete placement methods may not reach.
Max. horizontal reach 15 / 17 / 21 / 24 / 28 / 32 / 33 m
Our mobile form-frame placing boom with integrated base frame redefines efficiency in high-rise concrete placement. Engineered to synchronize with slip-form systems, this innovative climbing mechanism requires no separate power source - it ascends automatically in perfect coordination with your formwork operations.
Form-Frame Placing Boom: Specifically designed for high-rise buildings
This mobile formwork frame features a boom placed on a base and connected to the slipform for climbing. No additional power system is required. As the slipform rises, the concrete placement boom also rises.
Compared to typical self-climbing concrete placement booms, the Form-Frame Placing Boom offers the following advantages:
1. No climbing system design is required, allowing for adjustments to the construction site.
2. No assistance is required for climbing the slipform, and no vertical holes need to be drilled in the ground.
3. It is easy to install, convenient to use, and cost-effective.
Competitive Advantages Over Conventional Self-Climbing Booms
1.Adaptive Climbing System
Eliminates custom climbing mechanism design with site-adjustable configurations that adapt to diverse project requirements.
2.Seamless Synchronized Operation
Proprietary slip-form integration enables autonomous climbing:
◈Zero manual intervention required
◈No structural penetrations or floor openings needed
◈Continuous vertical progress with formwork
Optimized Cost Efficiency
◈Reduced installation complexity
◈Minimal labor requirements
◈Faster cycle times
◈Lower total ownership costs
Operational Superiority
◈Instant deployment capability
◈Intuitive control interface
◈Maintenance-optimized design
◈Continuous pour capacity for critical structural elements
Technical Highlights
◈Synchronized climbing mechanism
◈Slip-form powered movement
◈Base frame integration system
◈360° placement coverage
◈High-payload concrete distribution
We provide a variety of configurations of concrete placing booms, including spider placing boom , floor-fixed self-climbing placing boom, elevator-fixed placing boom, stationary placing boom, and other models to meet the needs of different construction scenarios. Our concrete placing booms are made of high-strength steel, with a lightweight boom structure, flexible rotation, and strong stability. They are particularly suitable for fine pouring operations such as high-rise building core tubes, bridge piers, and prefabricated component plants. Contact us to provide you with Concrete Pumping Plant solutions!
