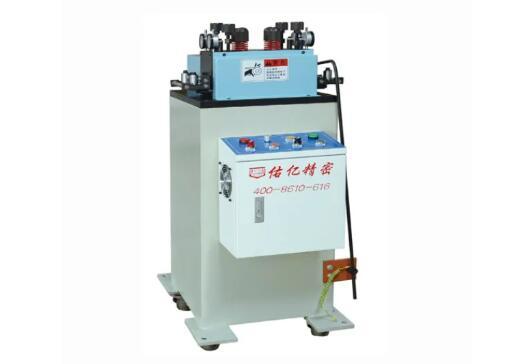

SNL Type Single/Two stage Precision Straightener (Thickness:
Price:
Specifically designed for high-precision stamping of medium-thin materials. As coil materials cannot produce quality products without stress-relieving leveling, the performance of the leveling machine plays a critical role in production.
Engineered for optimal leveling of thin materials (0.1-0.6mm) including stainless steel, copper, iron, and aluminum sheets, delivering flawless flattening results.
Constructed with premium SUJ2 imported steel rollers, heat-treated to HRC 60°, precision hard-chrome plated and ground to ensure uniform coating thickness and ±0.002mm cylindricity tolerance.
Features a floating four-point balanced micro-adjustment system with dial indicator for rapid precision alignment, enabling swift achievement of optimal leveling parameters.
Full-drive dual roller system eliminates power loss and surface scratches caused by passive rotation in conventional models, ensuring energy efficiency and material integrity.
Advanced lubrication system enhances operational longevity and maintains micron-level precision during extended production runs.
Optional hinged-opening mechanism facilitates quick roller compartment access for debris removal and maintenance.
Thin Material Enhancement:
SNL Type Single/Two stage Precision Straightener Equipped with auxiliary support rollers between upper/lower leveling shafts to prevent pressure-induced bending deformation. This patented configuration triples roller lifespan while enhancing leveling intensity, achieving superior surface flatness (≤0.05mm/m²) for ultra-thin materials (0.1-0.6mm). Particularly effective for processing high-strength alloys and tempered metals.
Inquire now
Engineered for optimal leveling of thin materials (0.1-0.6mm) including stainless steel, copper, iron, and aluminum sheets, delivering flawless flattening results.
Constructed with premium SUJ2 imported steel rollers, heat-treated to HRC 60°, precision hard-chrome plated and ground to ensure uniform coating thickness and ±0.002mm cylindricity tolerance.
Features a floating four-point balanced micro-adjustment system with dial indicator for rapid precision alignment, enabling swift achievement of optimal leveling parameters.
Full-drive dual roller system eliminates power loss and surface scratches caused by passive rotation in conventional models, ensuring energy efficiency and material integrity.
Advanced lubrication system enhances operational longevity and maintains micron-level precision during extended production runs.
Optional hinged-opening mechanism facilitates quick roller compartment access for debris removal and maintenance.
Thin Material Enhancement:
SNL Type Single/Two stage Precision Straightener Equipped with auxiliary support rollers between upper/lower leveling shafts to prevent pressure-induced bending deformation. This patented configuration triples roller lifespan while enhancing leveling intensity, achieving superior surface flatness (≤0.05mm/m²) for ultra-thin materials (0.1-0.6mm). Particularly effective for processing high-strength alloys and tempered metals.
Inquire now
