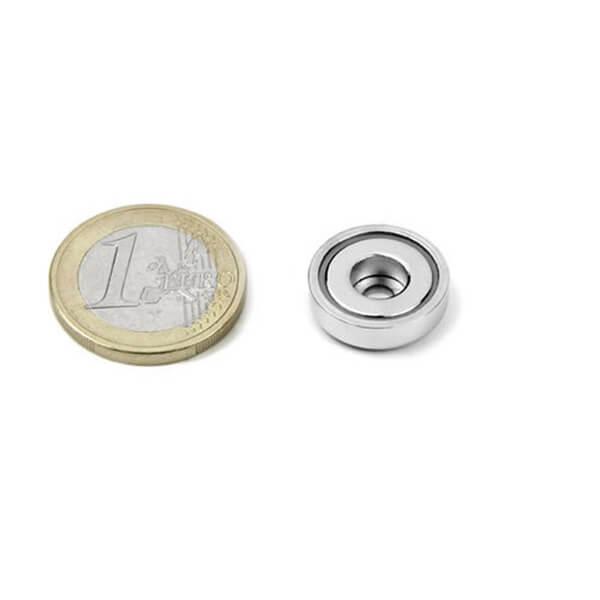

16mm Counterbore Pot Magnets
Price:
Ø16x5mm is the smallest common neodymium pot magnet with Ø6.5 straight hole, which has at 8.8 lb pulling power. Punch and lathe types are available for the small cylindrical hole pot magnet. Nickel is standard plating for counterbore neodymium pot magnets 16x5mm, which has bright appearance. The small wholesale pot magnets with cylindrical straight hole are screwed into place by M3 flat head screws.
Characteristics Of Ø16mm Counterbore Pot Magnets
Characteristics Of Ø16mm Counterbore Pot Magnets
Category | Pot Magnets |
Type | With Cylindrical Hole - B16 |
Magnet&Grade | NdFeB-N35 |
Dimension | Ø16 x 5mm |
Diameter | 16mm |
Thickness | 5mm |
Magnet Hole | 6.5 |
Coating | Nickel-Copper-Nickel |
Pull Force | 4 kg |
Tolerance | +/-0.1mm |
Working Temp. | 80℃ |
