12.7MM Worm Drive Hose Clamp
Price:

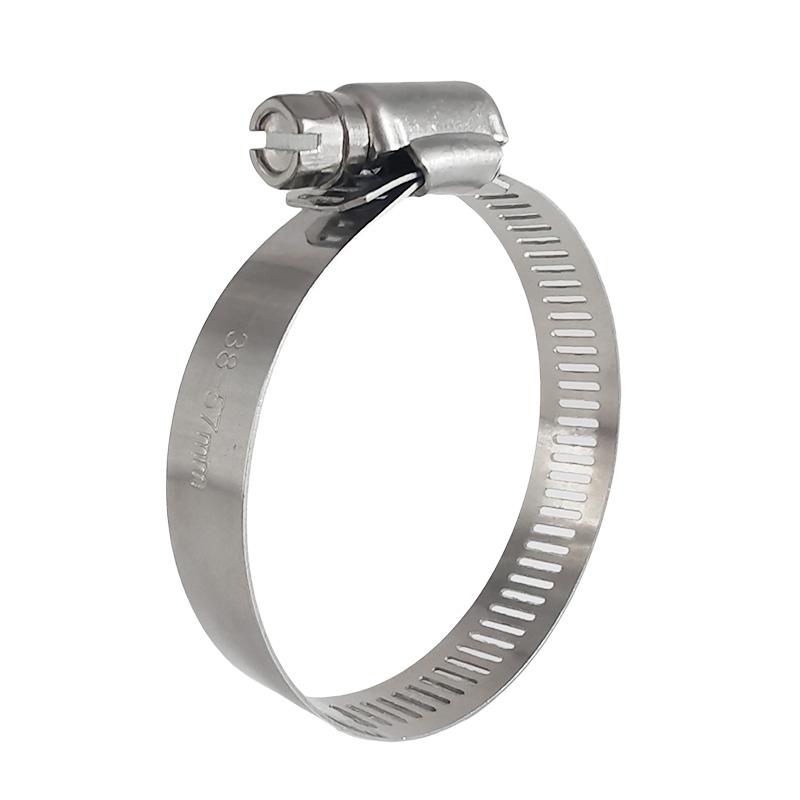

12.7MM Worm Drive Hose Clamp
1/2″(12.7mm) Worm drive hose clamp is suitable for medium duty surfaces. It is also called American type hose clamp, this is stainless steel with minus screw. It has wide diameter range and various material. Widely used in all area, from home usage to heavy industry.
Feature
Medium duty surface, has wide diameter range.
Ensure tight and leak-free seal
Band Width: 1/2″(12.7mm)
Band Thickness: 0.024″ (0.6mm)
Screw: 5/16″ (8mm) Hex slotted or cross screw head
Recommended Tightening Torque: 6.5N.m
No burrs, protect soft hose well
Standard: SAE
Application: Widely used in all area, automotive, hydraulic, industry, marine and household.
Parameters
Material
If you are looking for more details, kindly visit our website.
1/2″(12.7mm) Worm drive hose clamp is suitable for medium duty surfaces. It is also called American type hose clamp, this is stainless steel with minus screw. It has wide diameter range and various material. Widely used in all area, from home usage to heavy industry.
Feature
Medium duty surface, has wide diameter range.
Ensure tight and leak-free seal
Band Width: 1/2″(12.7mm)
Band Thickness: 0.024″ (0.6mm)
Screw: 5/16″ (8mm) Hex slotted or cross screw head
Recommended Tightening Torque: 6.5N.m
No burrs, protect soft hose well
Standard: SAE
Application: Widely used in all area, automotive, hydraulic, industry, marine and household.
Parameters
UD No. | SAE Size | Min Dia (in) | Max Dia (in) | Min Dia (mm) | Max Dia (mm) |
UD12A-06 | 06 | 7/16 | 25/32 | 11 | 20 |
UD12A-08 | 08 | 7/16 | 1 | 11 | 25 |
UD12A-10 | 10 | 1/2 | 1 1/16 | 13 | 27 |
UD12A-12 | 12 | 1/2 | 1 1/4 | 13 | 32 |
UD12A-16 | 16 | 11/16 | 1 1/2 | 18 | 38 |
UD12A-20 | 20 | 3/4 | 1 3/4 | 19 | 44 |
UD12A-24 | 24 | 1 | 2 | 25 | 51 |
UD12A-28 | 28 | 1 1/4 | 2 1/4 | 32 | 57 |
UD12A-32 | 32 | 1 1/2 | 2 1/2 | 38 | 64 |
UD12A-36 | 36 | 1 3/4 | 2 3/4 | 44 | 70 |
UD12A-40 | 40 | 2 | 3 | 51 | 76 |
UD12A-44 | 44 | 2 1/4 | 3 1/4 | 57 | 82 |
UD12A-48 | 48 | 2 1/2 | 3 1/2 | 64 | 89 |
UD12A-52 | 52 | 2 3/4 | 3 3/4 | 70 | 95 |
UD12A-56 | 56 | 3 | 4 | 76 | 101 |
UD12A-60 | 60 | 3 1/4 | 4 1/4 | 83 | 108 |
UD12A-64 | 64 | 3 1/2 | 4 1/2 | 89 | 114 |
UD12A-72 | 72 | 4 | 5 | 102 | 127 |
UD12A-80 | 80 | 4 1/2 | 5 1/2 | 114 | 140 |
UD12A-88 | 88 | 5 | 6 | 127 | 152 |
UD12A-96 | 96 | 5 1/2 | 6 1/2 | 140 | 165 |
UD12A-104 | 104 | 6 | 7 | 152 | 178 |
Sizes can be adjusted as per inquiry. |
Material
Material | Band | Housing | Screw |
W1 | Zinc plated steel | Zinc plated steel | Zinc plated steel |
W2 | AISI 201SS/304SS | AISI 201SS/304SS | Zinc plated steel |
W2B | AISI 201SS | Zinc plated steel | Zinc plated steel |
W4 | AISI 201SS/304SS | AISI 201SS/304SS | AISI 201SS/304SS |
W5 | AISI 316SS | AISI 316SS | AISI 316SS |
If you are looking for more details, kindly visit our website.
