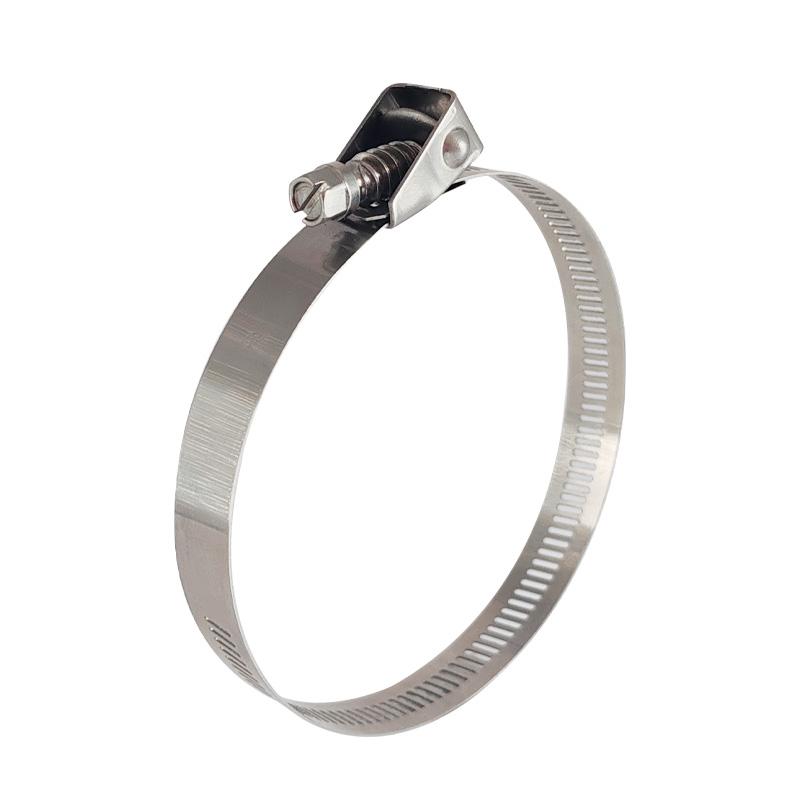

American Type Quick Release Hose Clamp
Price:
American Type Quick Release Hose Clamp
American type quick release hose clamp is ideal for the application where the clamp must be open for installation. These quick release hose clamp are perfect for rapid installation and removal in restricted or difficult areas. It widely used in telecommunications and cable installation industries. Only need three steps: 1. Clamp around the object. 2. Slip band through housing. 3. Snap screw down and tighten.
Feature
Easy to install and remove, it will be open when installation
Bandwidth: 12.7mm and 14mm
Thickness: 0.6mm
Size can be customized as demand.
Load torque: 7.5N.m min
Material: W2, W4
Application: Widely used in telecommunications and cable installation industries.
Parameters
Material
We offer competitive wholesale pricing, flexible minimum order quantities (MOQs), and fast global delivery to meet your business needs. With advanced manufacturing technology and strict quality control, YOUDE ensures every clamp delivers reliable performance and durability.
Looking for a trusted supplier of quick release hose clamps? Contact us today for a customized quote and discover why businesses worldwide choose YOUDE for their hose clamp solutions!
You can find more information on our web, so please take a look.
American type quick release hose clamp is ideal for the application where the clamp must be open for installation. These quick release hose clamp are perfect for rapid installation and removal in restricted or difficult areas. It widely used in telecommunications and cable installation industries. Only need three steps: 1. Clamp around the object. 2. Slip band through housing. 3. Snap screw down and tighten.
Feature
Easy to install and remove, it will be open when installation
Bandwidth: 12.7mm and 14mm
Thickness: 0.6mm
Size can be customized as demand.
Load torque: 7.5N.m min
Material: W2, W4
Application: Widely used in telecommunications and cable installation industries.
Parameters
UD NO. | Size | Min(in) | Max(in) | Min(mm) | Max(mm) |
UDQRA-1-1332 | 12 | 1/2 | 1-1/4 | 13 | 32 |
UDQRA-1-1944 | 20 | 3/4 | 1-3/4 | 19 | 44 |
UDQRA-1-2751 | 24 | 1-1/16 | 2 | 27 | 51 |
UDQRA-1-2557 | 28 | 1 | 2-1/4 | 25 | 57 |
UDQRA-1-2570 | 36 | 1 | 2-3/4 | 25 | 70 |
UDQRA-1-3989 | 48 | 1-1/2 | 3-1/2 | 39 | 89 |
UDQRA-1-25102 | 56 | 1 | 4 | 25 | 102 |
UDQRA-1-51127 | 72 | 2 | 5 | 51 | 127 |
UDQRA-1-1332 | 88 | 2 | 6 | 51 | 152 |
UDQRA-1-45178 | 104 | 2-7/8 | 7 | 45 | 178 |
UDQRA-1-45197 | 116 | 1-3/4 | 7-3/4 | 45 | 197 |
UDQRA-1-45216 | 128 | 1-3/4 | 8-1/2 | 45 | 216 |
UDQRA-1-45228 | 136 | 1-3/4 | 9 | 45 | 228 |
UDQRA-1-51254 | 152 | 2 | 10 | 51 | 254 |
UDQRA-1-51311 | 188 | 2 | 12-1/4 | 51 | 311 |
UDQRA-1-333381 | 232 | 13-1/8 | 15 | 333 | 381 |
Material
Material | Band | Housing | Screw |
W2 | 201/304SS | 201/304SS | Zinc plated steel |
W4 | 201/304SS | 201/304SS | 201/304SS |
We offer competitive wholesale pricing, flexible minimum order quantities (MOQs), and fast global delivery to meet your business needs. With advanced manufacturing technology and strict quality control, YOUDE ensures every clamp delivers reliable performance and durability.
Looking for a trusted supplier of quick release hose clamps? Contact us today for a customized quote and discover why businesses worldwide choose YOUDE for their hose clamp solutions!
You can find more information on our web, so please take a look.
