T Bolt Hose Clamp with Spring
Price:

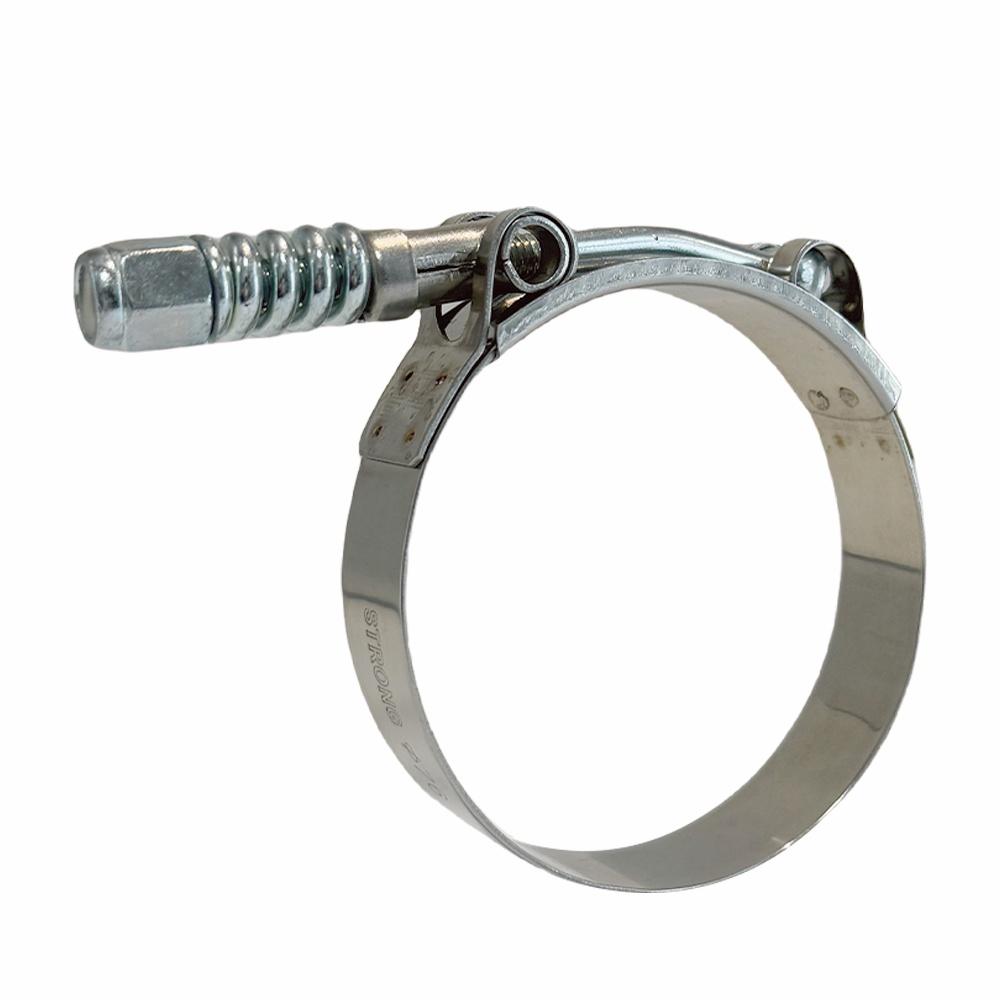

T Bolt Hose Clamp with Spring
T-bolt clamp with spring can provide constant tension performance to compensate for the expansion and contraction when temperatures fluctuate. Provides high strength and a 360°seal. Designed for use in high vibration and large diameter applications common in heavy trucks, industrial machinery, off road equipment, agricultural irrigation and machinery, for air intake and coolant adapter.
Feature
The overall shape of the T-type throat hoop is in the shape of “T”,Built-in spring element
The spring is compressed and the band tightened to firmly clamp the fixed object.
Bandwidth*thickness: 19mm*0.6mm
Size：35-40mm to all
Screw：M6*75mm
Loading Torque：20N.m
Surface：Polishing/Zinc-plated
Material：Stainless steel:200 series and 300 series/galvanized iron
Application：High vibration and large diameter applications common in heavy trucks, industrial machinery, off road equipment, agricultural irrigation and machinery, for air intake and coolant adapter.
Parameters
Material
Our T-Bolt Hose Clamps are made from premium stainless steel, offering superior strength, corrosion resistance, and long-lasting durability. They provide even clamping force and a leak-proof connection, making them ideal for high-performance engines, turbo systems, and reinforced hoses.
At YOUDE, we offer custom sizes, OEM branding, and bulk pricing, ensuring the perfect fit for distributors, wholesalers, and industrial buyers. Partner with us for durable, factory-direct T-Bolt Hose Clamps and get a competitive wholesale quote today!
If you want to learn more, please visit our website.
T-bolt clamp with spring can provide constant tension performance to compensate for the expansion and contraction when temperatures fluctuate. Provides high strength and a 360°seal. Designed for use in high vibration and large diameter applications common in heavy trucks, industrial machinery, off road equipment, agricultural irrigation and machinery, for air intake and coolant adapter.
Feature
The overall shape of the T-type throat hoop is in the shape of “T”,Built-in spring element
The spring is compressed and the band tightened to firmly clamp the fixed object.
Bandwidth*thickness: 19mm*0.6mm
Size：35-40mm to all
Screw：M6*75mm
Loading Torque：20N.m
Surface：Polishing/Zinc-plated
Material：Stainless steel:200 series and 300 series/galvanized iron
Application：High vibration and large diameter applications common in heavy trucks, industrial machinery, off road equipment, agricultural irrigation and machinery, for air intake and coolant adapter.
Parameters
Size(mm) | W*T(mm) | UD NO. | PCS/Bag | Pcs/CTN |
35-40 | 19 * 0.6 | UDTBS-3540 | 10 | 300 |
38-43 | 19 * 0.6 | UDTBS-3843 | 10 | 300 |
41-46 | 19 * 0.6 | UDTBS-4146 | 10 | 300 |
44-51 | 19 * 0.6 | UDTBS-4451 | 10 | 300 |
48-56 | 19 * 0.6 | UDTBS-4856 | 10 | 200 |
51-59 | 19 * 0.6 | UDTBS-5159 | 10 | 200 |
54-62 | 19 * 0.6 | UDTBS-5462 | 10 | 200 |
57-65 | 19 * 0.6 | UDTBS-5765 | 10 | 200 |
60-68 | 19 * 0.6 | UDTBS-6068 | 10 | 200 |
63-71 | 19 * 0.6 | UDTBS-6371 | 10 | 200 |
67-75 | 19 * 0.6 | UDTBS-6775 | 10 | 200 |
70-78 | 19 * 0.6 | UDTBS-7078 | 10 | 200 |
73-81 | 19 * 0.6 | UDTBS-7381 | 10 | 200 |
76-84 | 19 * 0.6 | UDTBS-7684 | 10 | 200 |
79-87 | 19 * 0.6 | UDTBS-7987 | 10 | 200 |
83-91 | 19 * 0.6 | UDTBS-8391 | 10 | 200 |
86-94 | 19 * 0.6 | UDTBS-8694 | 10 | 100 |
89-97 | 19 * 0.6 | UDTBS-8997 | 10 | 100 |
92-100 | 19 * 0.6 | UDTBS-92100 | 10 | 100 |
95-103 | 19 * 0.6 | UDTBS-95103 | 10 | 100 |
102-110 | 19 * 0.6 | UDTBS-102110 | 10 | 100 |
Sizes can be adjusted as per inquiry. |
Material
Material | Band | Bridge | Trunnion | Cap | Nut | Bolt |
W2 | 304ss | 304ss | Zinc plated | Zinc plated | Zinc plated | Zinc plated |
W4 | 304ss | 304ss | 304ss | 304ss | 304ss | 304ss |
Our T-Bolt Hose Clamps are made from premium stainless steel, offering superior strength, corrosion resistance, and long-lasting durability. They provide even clamping force and a leak-proof connection, making them ideal for high-performance engines, turbo systems, and reinforced hoses.
At YOUDE, we offer custom sizes, OEM branding, and bulk pricing, ensuring the perfect fit for distributors, wholesalers, and industrial buyers. Partner with us for durable, factory-direct T-Bolt Hose Clamps and get a competitive wholesale quote today!
If you want to learn more, please visit our website.
