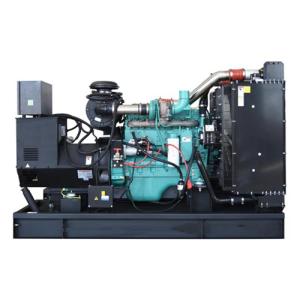

Cummins 130kVA Diesel Generator Set with Stamford Alternator

Genset Model: XP-C142
Prime Power: 130 kVA
Standby Power: 142 kVA
Voltage: 380V/400V/415/440V
Frequency: 50Hz
Overall Dimensions: 2400×900×1700 mm
Weight: 1360 kg

Engine Specification
Manufacturer / Model     DCEC Cummins 6BTAA5.9-G2
Air intake system     Turbo, Air/Air Cooling
Fuel system     PB type fuel pump
Cylinder arrangement     6 in line
Displacement     5.9L
Bore and stroke     102*120（mm）
Compression ratio     17.3:1
Rated speed     1500rpm
Max. Standby power at rated speed     130KW/174HP
Governor type     Electronic
Fuel consumption @ 100% (Prime Power) Load     208 g/kWh     28.9 L/h
Fuel consumption @ 75% (Prime Power) Load     207 g/kWh     21.7 L/h
Fuel consumption @ 50% (Prime Power) Load     214 g/kWh     15.3 L/h

Alternator Specification (Stamford UCI274E1)
Number of Phase     3
Connecting Type     3 Phase and 4 Wires, Y type connecting
Number of Bearing     1
Power Factor     0.8
Protection Class     IP23
Altitude     ≤1000m
Exciter Type     Brushless exciting
Insulation Class/Temperature Rise     H/H
Telephone Influence Factor (TIF)     ＜50
THF     ＜2%
