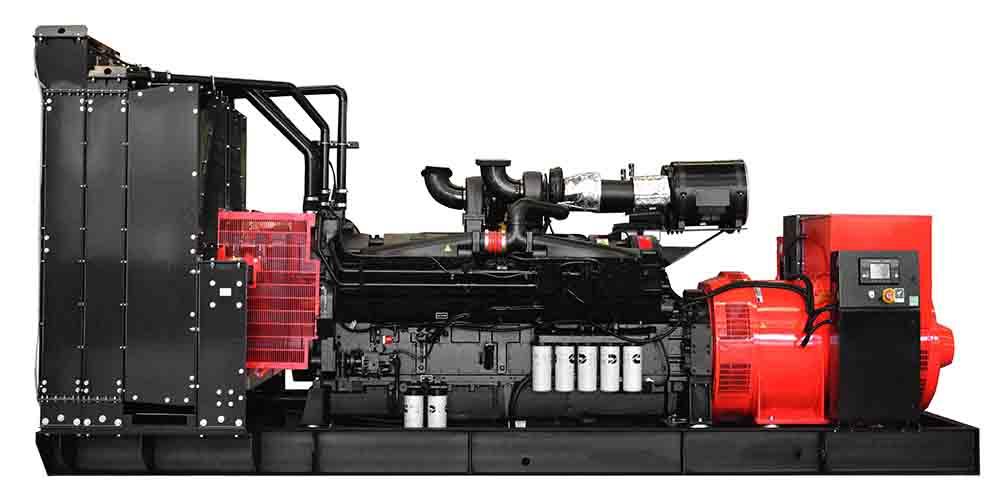

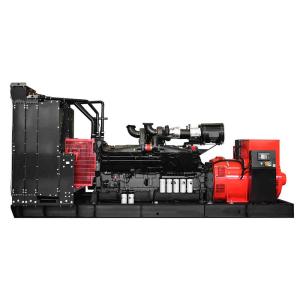

Cummins 1500kVA Diesel Generator Set with Stamford Alternato

Genset Model: XP-C1650
Prime Power: 1500 kVA
Standby Power: 1650 kVA
Voltage: 380V/400V/415/440V
Frequency: 50Hz
Overall Dimensions: 5550×2150×2550 mm
Weight: 11000 kg

Engine Specification
Manufacturer / Model     CCEC Cummins KTA50-GS8
Air intake system     Turbo, Air/Water cooling
Fuel system     PT type fuel pump, EFC
Cylinder arrangement     16 in “V”
Displacement     50.3L
Bore and stroke     159*159（mm）
Compression ratio     14.9:1
Rated speed     1500rpm
Max. Standby power at rated speed     1429KW/1944HP
Governor type     Electronic
Fuel consumption @ 100% (Prime Power) Load     204 g/kWh     313 L/h
Fuel consumption @ 75% (Prime Power) Load     210 g/kWh     243 L/h
Fuel consumption @ 50% (Prime Power) Load     221 g/kWh     175 L/h

Alternator Specification (Stamford S7L1D-C4)
Number of Phase     3
Connecting Type     3 Phase and 4 Wires, Y type connecting
Number of Bearing     1
Power Factor     0.8
Protection Class     IP23
Altitude     ≤1000m
Exciter Type     Brushless exciting
Insulation Class/Temperature Rise     H/H
Telephone Influence Factor (TIF)     ＜50
THF     ＜2%
