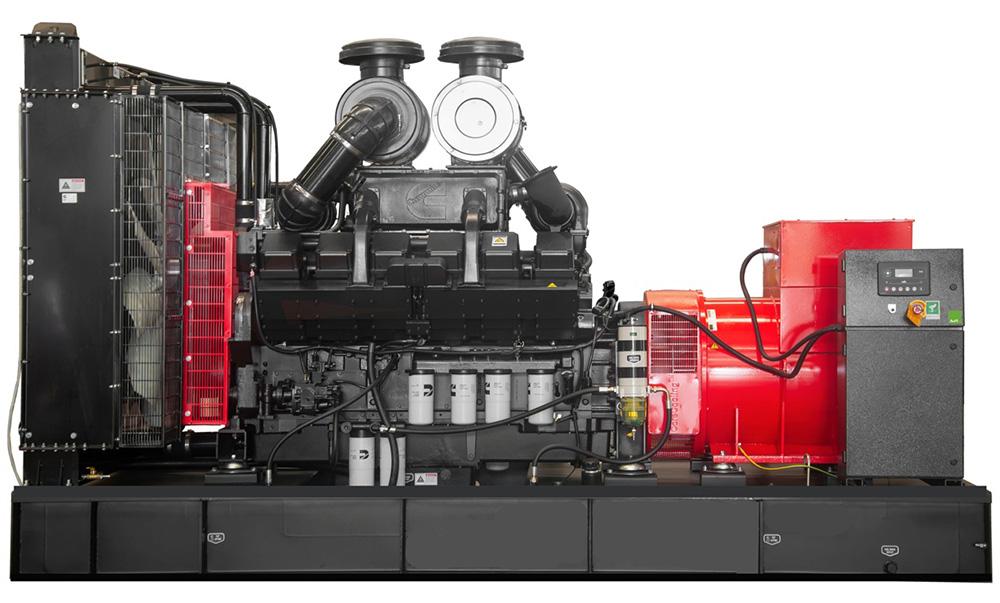

Cummins 1000kVA Diesel Generator Set with Stamford Alternato

Genset Model: XP-C1100
Prime Power: 1000 kVA
Standby Power: 1100 kVA
Voltage: 380V/400V/415/440V
Frequency: 50Hz
Overall Dimensions: 4250×1800×2250 mm
Weight: 7430 kg

Engine Specification
Manufacturer / Model     CCEC Cummins KTA38-G5
Air intake system     Turbo, Air/Water cooling
Fuel system     PT type fuel pump, EFC
Cylinder arrangement     12 in “V”
Displacement     37.8L
Bore and stroke     159*159（mm）
Compression ratio     13.9:1
Rated speed     1500rpm
Max. Standby power at rated speed     970KW/1319HP
Governor type     Electronic
Fuel consumption @ 100% (Prime Power) Load     202 g/kWh     205 L/h
Fuel consumption @ 75% (Prime Power) Load     207 g/kWh     158 L/h

Alternator Specification (Stamford S6L1D-E4)
Number of Phase     3
Connecting Type     3 Phase and 4 Wires, Y type connecting
Number of Bearing     1
Power Factor     0.8
Protection Class     IP23
Altitude     ≤1000m
Exciter Type     Brushless exciting
Insulation Class/Temperature Rise     H/H
Telephone Influence Factor (TIF)     ＜50
THF     ＜2%
