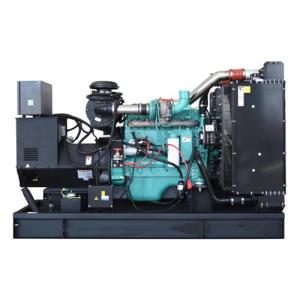

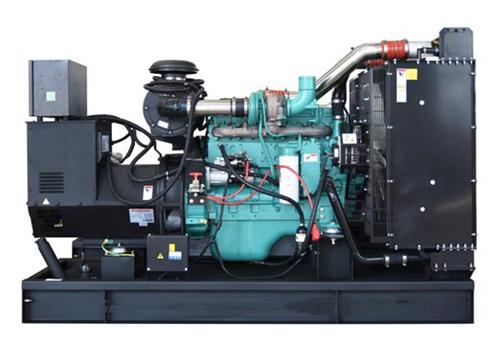

Cummins 250kVA Diesel Generator Set with Stamford Alternator

Genset Model: XP-C275D
Prime Power: 250 kVA
Standby Power: 275 kVA
Voltage: 380V/400V/415/440V
Frequency: 50Hz
Overall Dimensions: 2610×1000×1850 mm
Weight: 2060 kg

Engine Specification
Manufacturer / Model     DCEC Cummins 6LTAA8.9-G2
Air intake system     Turbo, Air/Air Cooling
Fuel system     P7100 type fuel pump
Cylinder arrangement     6 in line
Displacement     8.9L
Bore and stroke     114*145（mm）
Compression ratio     16.6:1
Rated speed     1500rpm
Max. Standby power at rated speed     240KW/322HP
Governor type     Electronic
Fuel consumption @ 100% (Prime Power) Load     197 g/kWh     52L/h
Fuel consumption @ 75% (Prime Power) Load     197 g/kWh     39L/h
Fuel consumption @ 50% (Prime Power) Load     201 g/kWh     27L/h

Alternator Specification (Stamford UCDI274K1)
Number of Phase     3
Connecting Type     3 Phase and 4 Wires, Y type connecting
Number of Bearing     1
Power Factor     0.8
Protection Class     IP23
Altitude     ≤1000m
Exciter Type     Brushless exciting
Insulation Class/Temperature Rise     H/H
Telephone Influence Factor (TIF)     ＜50
THF     ＜2%
