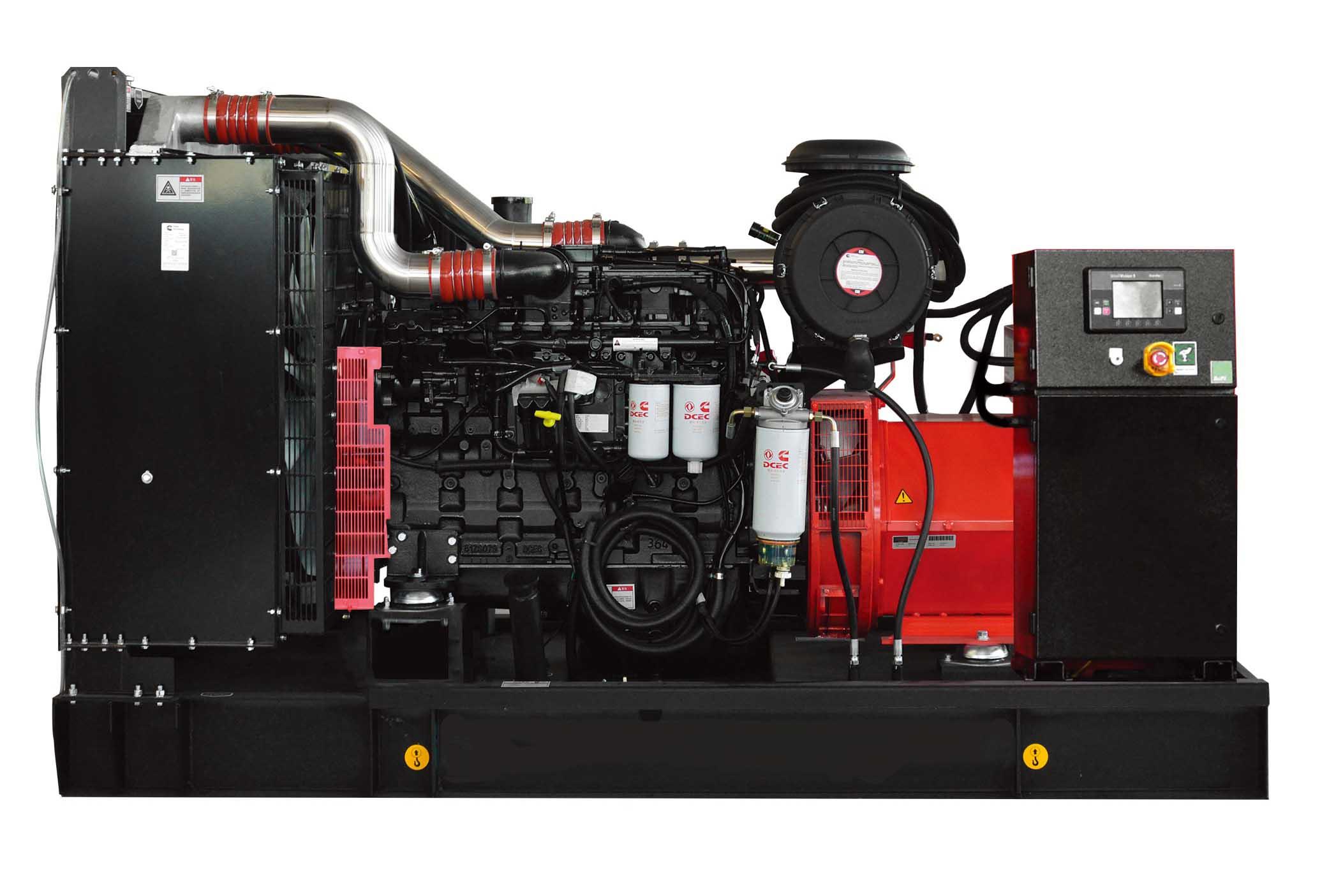

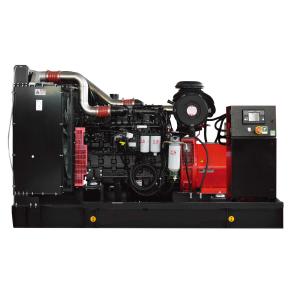

Cummins 500kVA Diesel Generator Set with Stamford Alternator

Genset Model: XP-C550
Prime Power: 500 kVA
Standby Power: 550 kVA
Voltage: 380V/400V/415/440V
Frequency: 50Hz
Overall Dimensions: 3450×1400×2100 mm
Weight: 4040 kg

Engine Specification
Manufacturer / Model     CCEC Cummins KTA19-G3A
Air intake system     Turbo, Water/Air cooling
Fuel system     PT type fuel pump, EFC
Cylinder arrangement     6 in line
Displacement     18.9L
Bore and stroke     159*159（mm）
Compression ratio     13.9:1
Rated speed     1500rpm
Max. Standby power at rated speed     504KW/675HP
Governor type     Electronic
Fuel consumption @ 100% (Prime Power) Load     203 g/kWh     104.7 L/h
Fuel consumption @ 75% (Prime Power) Load     207 g/kWh     80.0 L/h

Alternator Specification (Stamford S5L1D-C4)
Number of Phase     3
Connecting Type     3 Phase and 4 Wires, Y type connecting
Number of Bearing     1
Power Factor     0.8
Protection Class     IP23
Altitude     ≤1000m
Exciter Type     Brushless exciting
Insulation Class/Temperature Rise     H/H
Telephone Influence Factor (TIF)     ＜50
THF     ＜2%
